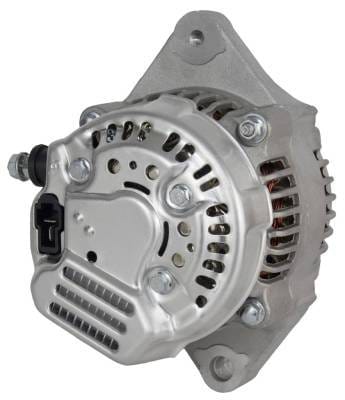

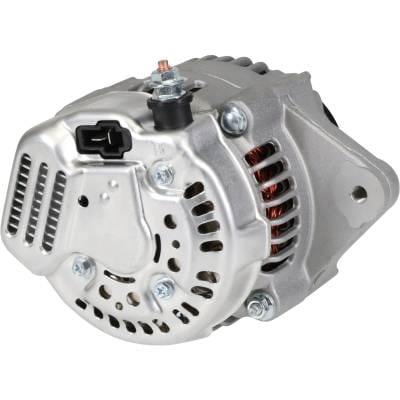

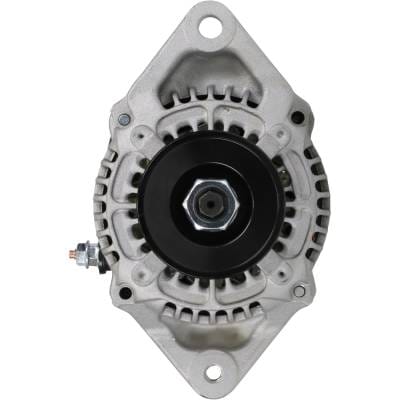

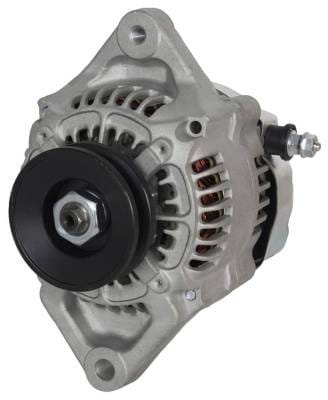

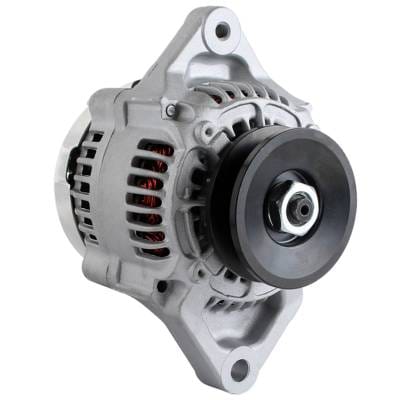

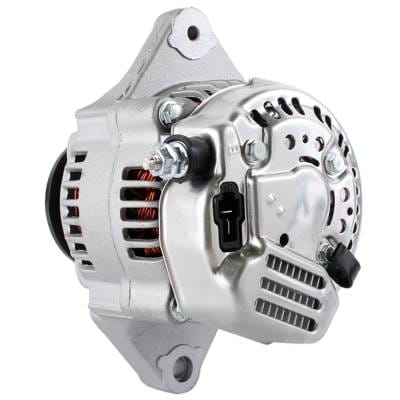

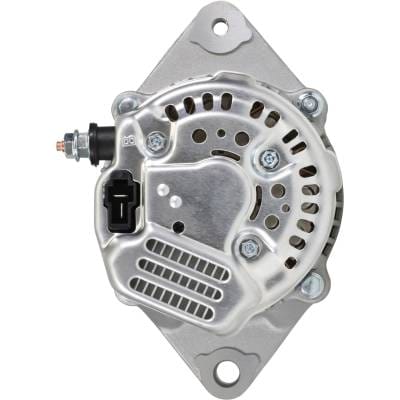

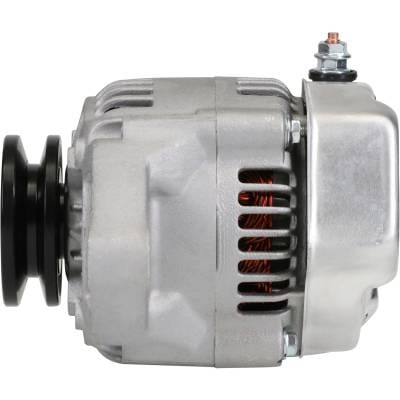

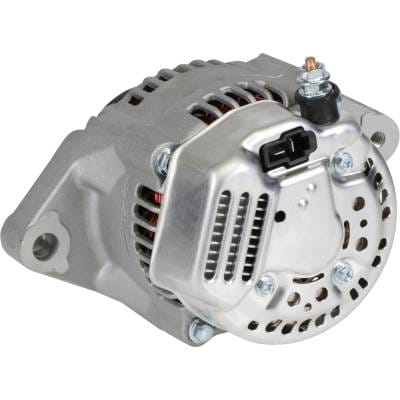

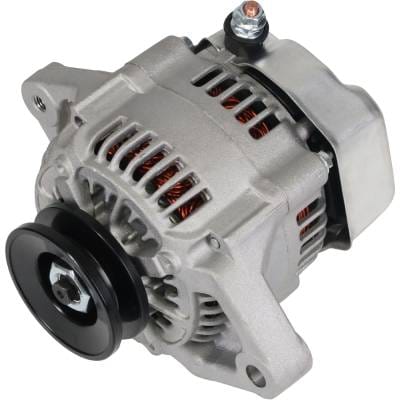

12V Alternator Compatible With 1994-2007 T95 Skid Steer V1305b M900q Diesel Engine 2007-2008 L5740

OEM PART NUMBERS:
• Kubota 3A611-74012 (3A61174012)
• Kubota 3A611-74011 (3A61174011)
• Kubota 3A611-74010 (3A61174010)
• Kubota 3A611-74013 (3A61174013)
• Kubota 3A611-74014 (3A61174014)
• Denso 101211-2850 (1012112850)
• Denso 101211-2851 (1012112851)
• Denso 101211-2490 (1012112490)
• Denso 101211-8520 (1012118520)
• Denso 101211-8521 (1012118521)
• Denso 101211-8522 (1012118522)
• Denso 101211-8523 (1012118523)
• Denso 101211-2200 (1012112200)
• Denso 101211-2201 (1012112201)
• Denso 9761219-285 (9761219285)
• Denso 9761219-852 (9761219852)
• Kubota 16615-64011 (1661564011)
• Kubota 16615-64012 (1661564012)
• Kubota 16615-64013 (1661564013)
• Kubota 16615-64014 (1661564014)
• Kubota TA043-74011 (TA04374011)
• Kubota TA043-74012 (TA04374012)
• Kubota TA043-74010 (TA04374010)
• Kubota KEARA16615
• Yanmar 129052-77220 (12905277220)
• Yanmar 129052-77221 (12905277221)
• AM880701
• MIU800942
• LRA02198 (LRA2198)
• LRA03514 (LRA3514)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 60 Amps
• Unit Type: Denso
• Rotation: Clockwise (CW)
• Fan: Internal
• Regulator: Internal
• Regulator Position: 9:00
• Polarity: Negative
• Output Stud: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.0mm Unthreaded
• IG Terminal: Spade
• L Terminal: Spade
• Weight: 7.8 lbs / 3.55 kg

FITS THOMAS EQUIPMENT:
• T95 Skid Steer - V1305-B Kubota Diesel (1994-2007)

FITS KUBOTA TRACTORS:
• L5740 / L5740HST / L5740HSTC (2007-2008)
• L4240HSTC (2007-2013)
• L5240HSTC

FITS KUBOTA ENGINES:
• M900Q Diesel
• V1305-B / V1305 Diesel
• D722 20HP Diesel
• G3B-H Diesel (1995-Up)
• D950-B Diesel (1998)
• KTC-1 Diesel

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
THOMAS EQUIPMENT:

T95:
• Thomas T95 Skid Steer V1305-B Kubota Diesel - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

KUBOTA TRACTORS:

L5740:
• Kubota L5740 Compact Tractor Diesel - 2007, 2008

L5740HST:
• Kubota L5740HST Compact Tractor Diesel - 2007, 2008

L5740HSTC:
• Kubota L5740HSTC Compact Tractor Diesel - 2007, 2008

L4240HSTC:
• Kubota L4240HSTC Compact Tractor Diesel - 2007, 2008, 2009, 2010, 2011, 2012, 2013

L5240HSTC:
• Kubota L5240HSTC Compact Tractor Diesel

KUBOTA DIESEL ENGINES:

Engine Applications:
• Kubota M900Q Diesel Engine
• Kubota V1305-B Diesel Engine
• Kubota V1305 Diesel Engine
• Kubota D722 20HP Diesel Engine
• Kubota D950-B Diesel Engine - 1998
• Kubota G3B-H Diesel Engine - 1995 and up
• Kubota KTC-1 Diesel Engine
