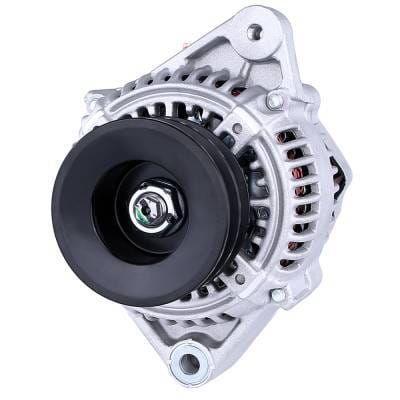

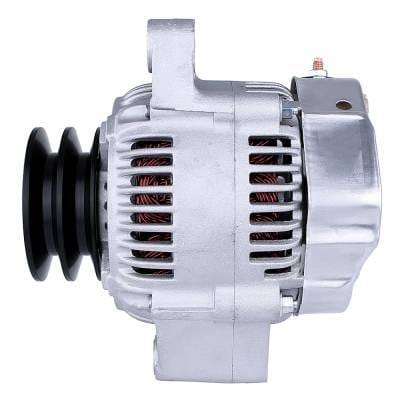

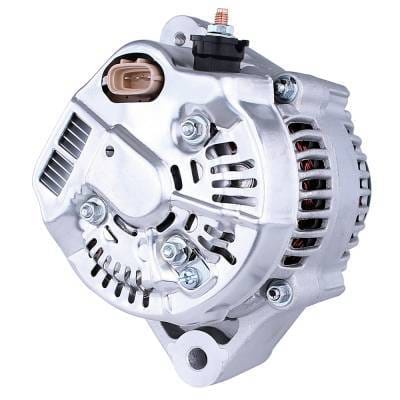

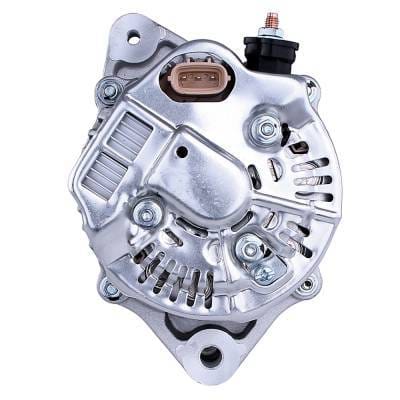

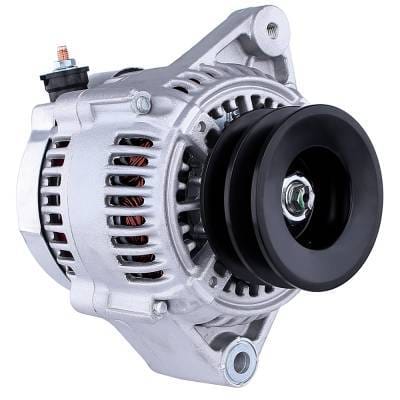

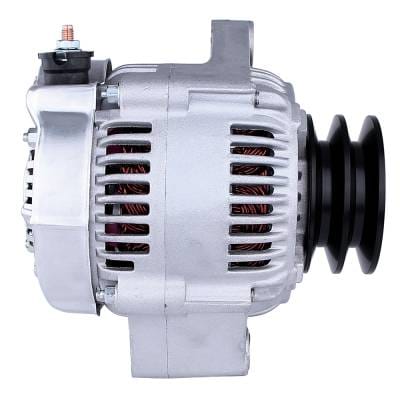

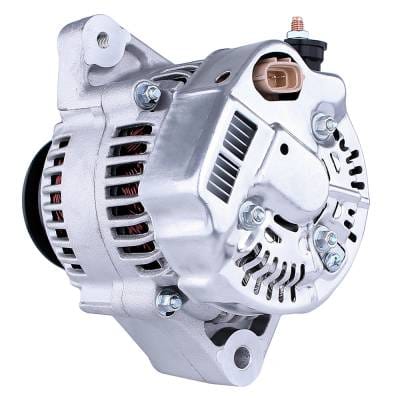

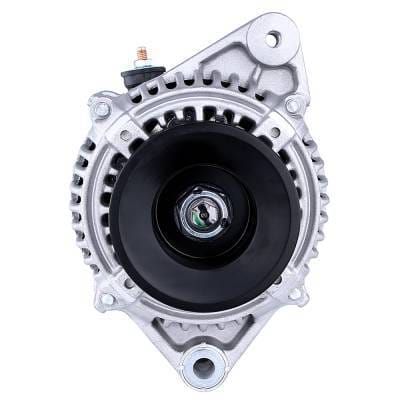

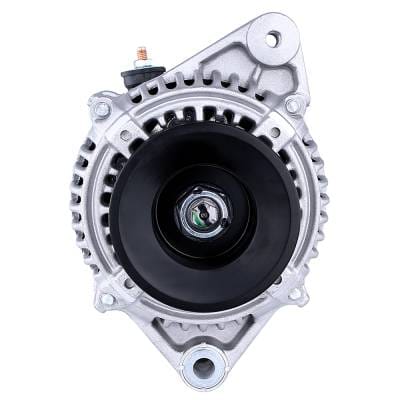

12V 80 Amp Alternator Compatible With 1997-2008 6Lp 6Lp-Dt 6Lp-Dte 6Lp-Ste 6Lp-Stze 6 Cylinder

YANMAR OEM PART NUMBERS:
• 119773-77200
• 11977377200 (no dashes)
• 128271-77200
• 12827177200 (no dashes)

DENSO / NIPPONDENSO PART NUMBERS:
• 101211-9940
• 1012119940 (no dashes)
• 101211-527
• 100211-9040
• 1002119040 (no dashes)

PRESTOLITE PART NUMBERS:
• 20130227

API MARINE PART NUMBERS:
• 20101
• 20025

LUCAS ELECTRICAL PART NUMBERS:
• LRA02144

AFTERMARKET PART NUMBERS:
• 3161M
• 9762219-136
• AND0192
• 400-52033
• 40052033 (no dashes)
• 12355
• 12355N
• 28-4591
• 284591
• 290442
• 702912355

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 80 Amps
• Rotation: CW (Clockwise)
• Design: IR/IF
• Pulley: V-Belt Single Groove (V2)
• Regulator Clock: 12:00
• Polarity: Negative
• B+ Terminal: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.0mm Unthreaded (58mm thick)
• Weight: 12 lbs (5.45 kg)

FITS ENGINES:
• 6LP-DT, 6LP-DTE, 6LP-DTZE, 6LP-DTZE1, 6LP-DTZY (1997-2008)
• 6LP-ST, 6LP-STE, 6LP-STZE (1997-2008)
• 6LPA-STP2 315HP, 6LPAM
• 6LY2M-STE, 6LYAM-STE, 6LYAM-UTE
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MARINE DIESEL ENGINES (1997-2008):

6LP SERIES:
• 6LP-DT 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-DTE 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-DTZE 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-DTZE1 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-DTZY 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-ST 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-STE 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• 6LP-STZE 6 Cylinder Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

6LPA SERIES:
• 6LPA-STP2 315HP Turbocharged Diesel
• 6LPAM Marine Diesel

6LY SERIES:
• 6LY2M-STE Marine Diesel
• 6LYAM-STE Marine Diesel
• 6LYAM-UTE Marine Diesel

ENGINE SPECIFICATIONS:
• Engine Type: 6 Cylinder In-Line Marine Diesel
• Displacement: 4.164L (254 cu in)
• Bore x Stroke: 94mm x 100mm
• Power Output: 260-315 HP
• Aspiration: Turbocharged / Turbocharged with Intercooler

NOTES:
• Alternator Type: IR/IF (Internal Regulator/Internal Fan)
• Output: 12V 80 Amps
• Rotation: Clockwise (CW)
• Pulley: V-Belt Single Groove
• Global part number - fits worldwide applications
• Verify OEM part number before ordering
