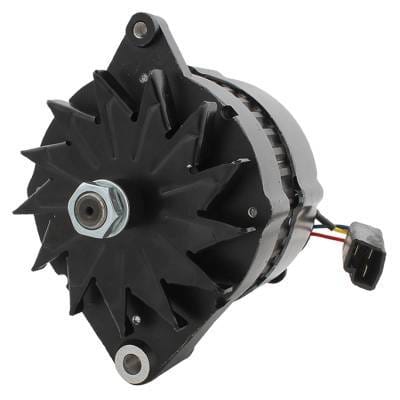

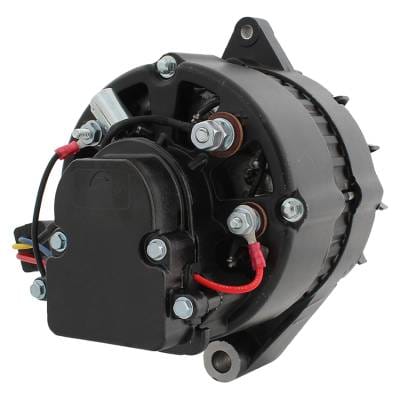

12V 65 Amp Alternator Compatible With G660e G880e Excavator 522 524 532C6 534B6 534B8 544 Handler

OEM PART NUMBERS:
• Cummins: 3909981, 3911248, 3604480
• Cummins: 3905224, EE9023, 3604475
• Gradall: 9108-3503 (91083503)
• JLG Industries: 1001108293
• Leece Neville: 110-442 (110442)
• Motorola: 8MR2301, 8MR2301L, 8MR2301LC
• Motorola: 8MR2301LB, 8MR2301LS
• Prestolite: 110-464 (110464)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 65A
• Fan: External
• Regulator: Internal (OEM)
• Shaft OD: 17mm (0.669")
• Shaft Threads: .669-20
• Mount Type: Spool
• Mounting Ear 1: M8-1.25 Threaded (16.2mm thick)
• Mounting Ear 2: 10.5mm Unthreaded (50mm thick)
• B+ Terminal: M6-1.0
• Polarity: Negative
• Weight: 11.25 lbs (5.11 kg)

FITS GRADALL EXCAVATORS:
• G660E, G880E

FITS GRADALL HANDLERS:
• 522, 524, 532C6
• 534B6, 534B8, 534B9, 534C6, 534C9, 534C10
• 544, 544B

FITS JLG TELEHANDLER:
• G9-43A (John Deere 4045T Diesel)PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
GRADALL EXCAVATORS:

G660E:
• Gradall Excavator G660E - Cummins Diesel

G880E:
• Gradall Excavator G880E - Cummins Diesel

GRADALL HANDLERS:

522:
• Gradall Handler 522 - Cummins Diesel

524:
• Gradall Handler 524 - Cummins Diesel

532C6:
• Gradall Handler 532C6 - Cummins Diesel

534 SERIES:
• Gradall Handler 534B6 - Cummins Diesel
• Gradall Handler 534B8 - Cummins Diesel
• Gradall Handler 534B9 - Cummins Diesel
• Gradall Handler 534C10 - Cummins Diesel
• Gradall Handler 534C6 - Cummins Diesel
• Gradall Handler 534C9 - Cummins Diesel

544 SERIES:
• Gradall Handler 544 - Cummins Diesel
• Gradall Handler 544B - Cummins Diesel

JLG INDUSTRIES:

G9-43A:
• JLG Telehandler G9-43A - John Deere 4045T Diesel

NOTE: All applications equipped with Cummins diesel engines (or John Deere 4045T diesel on JLG G9-43A). Leece Neville design, 12V 65 amp, external fan, internal regulator, spool mount.
