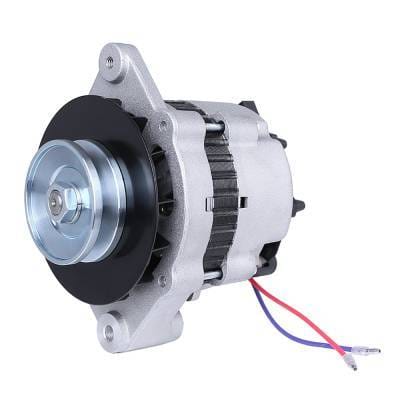

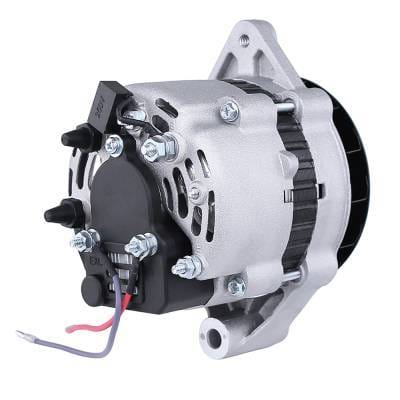

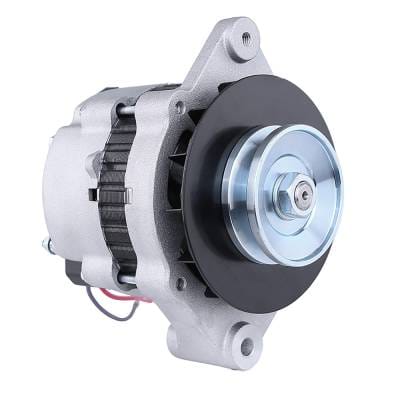

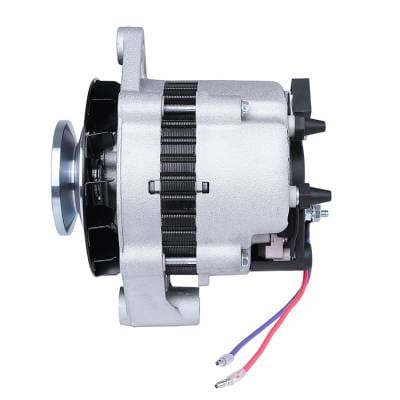

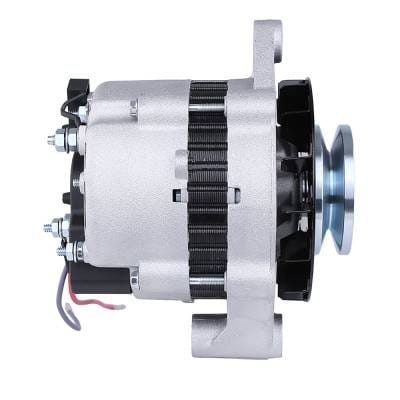

12V 51 Amp Alternator Compatible With Tennant 6500 7400 Sweeper Ford Industrial Vsg-413 1.3L

OEM PART NUMBERS:
• Tennant: 60559
• Caterpillar: MCF00211
• Mando: AC155515 / A000B0471K
• TA000B32201

SPECIFICATIONS:
• Type: Alternator (Mando Type)
• Voltage: 12V
• Amperage: 51 Amp
• Fan: External (EF)
• Regulator: Internal (IR)
• Pulley: 6-Groove Serpentine, 63mm (2.48") OD
• Regulator Clock Position: 6:00
• Polarity: Negative

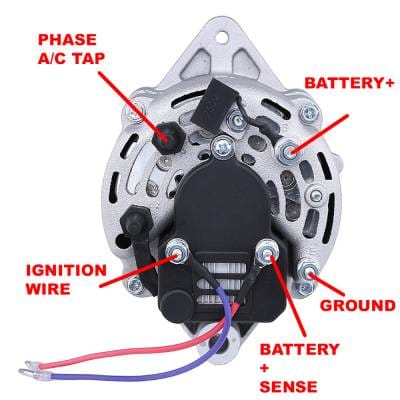

• Output Stud: 1/4-20
• Mounting Ear 1: 5/16-18 Threaded (16.4mm / 0.646" thick)
• Mounting Ear 2: 9.6mm Unthreaded (50.7mm / 1.996" thick)
• Weight: 11.26 lbs / 5.12 kg
• Condition: New

INDUSTRIAL / SWEEPER APPLICATIONS:
• Tennant 6500 / 7400 Sweeper w/Ford VSG-413 1.3L Gas/LP
• Caterpillar (Melroe) Lift Truck
• Ford Industrial VSG-413 1.3L (79ci) Inline-4 OHV Gas/LPG
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TENNANT SWEEPERS w/Ford VSG-413 1.3L Inline-4 OHV Gas/LP Engine:
• Tennant 6500 Parking Lot Sweeper w/Ford VSG-413 1.3L (79ci) 4-Cyl OHV Gas/LP
• Tennant 7400 Ride-On Sweeper w/Ford VSG-413 1.3L (79ci) 4-Cyl OHV Gas/LP

CATERPILLAR (MELROE) LIFT TRUCK APPLICATIONS:
• Caterpillar Lift Truck w/Mando Alternator (MCF00211)

FORD INDUSTRIAL ENGINE:
• Ford VSG-413 1.3L (79ci) Inline-4 OHV Gas/LPG Engine
• Bore × Stroke: 73.96 × 75.48mm
• Firing Order: 1-2-4-3
• Rated Speed: 2800 RPM Full Load / 3050 RPM No Load
