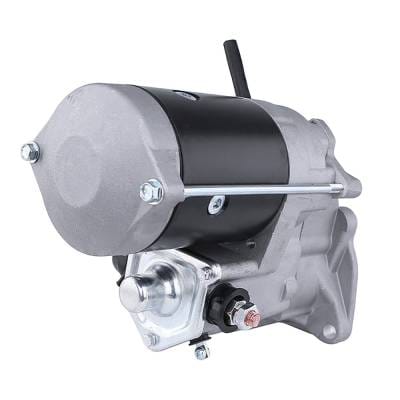

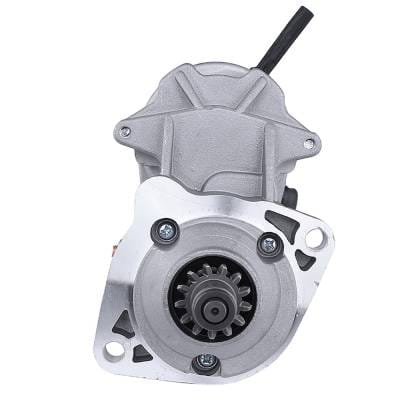

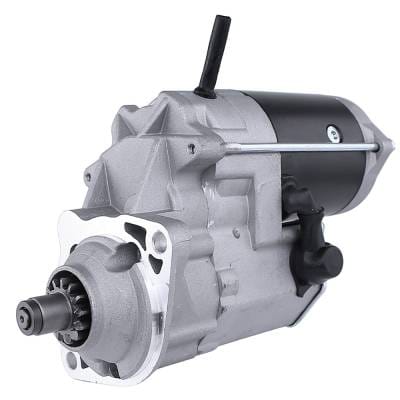

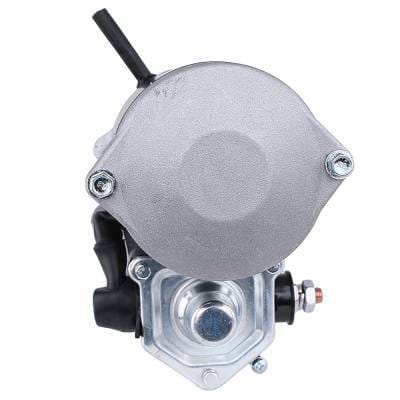

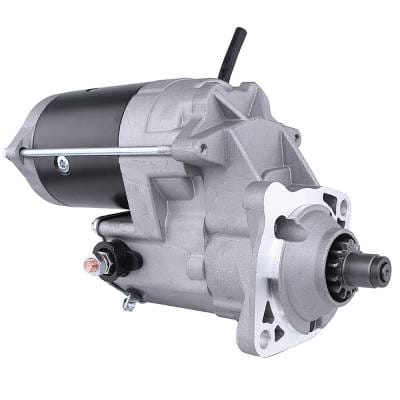

12V 4Kw High Torque Starter Compatible With Ford F-250 F-350 F-450 F-550 Super Duty 7.3L Powerstroke

NIPPONDENSO OEM PART NUMBERS:
• 228000-8420 - Nippondenso primary part number
• 2280008420 - Nippondenso without dashes
• TG228000-8420 - Denso with prefix
• TG2280008420 - Denso without dashes

DENSO OEM PART NUMBERS:
• 280-4204 - Denso First Time Fit
• 2804204 - Denso without dashes

CATERPILLAR OEM PART NUMBERS:
• 168-8125 - Caterpillar primary
• 1688125 - Caterpillar without dashes

MITSUBISHI OEM PART NUMBERS:
• M8T50071 - Mitsubishi primary
• M008T50071 - Mitsubishi with leading zeros
• M8T50071A - Mitsubishi variant
• M8T50072 - Mitsubishi cross-reference
• M008T50072 - Mitsubishi cross-reference

BOSCH OEM PART NUMBERS:
• SR7529X - Bosch primary
• 0986015661 - Bosch Service Europe

LEECE NEVILLE OEM:
• 35261220S - Leece Neville reference

FORD OEM PART NUMBERS:
• 1C24-11000-AA - Ford reference
• 1C2Z-11002-AA - Ford reference
• 1C3U-11000-AA - Ford primary
• 1C3U-11000-AB - Ford variant
• 1C3U-11000-AC - Ford variant
• 1C3U-11000-AD - Ford variant
• 1C3U-11000-AE - Ford variant
• 1C3Z-11002-AA - Ford service
• 2C24-11000-AA - Ford cross-reference
• F4TZ-11002-A - Ford primary (3-bolt)
• F4TZ-11002-ARM - Ford remanufactured
• F5TU-11000-AA - Ford primary
• F5TU-11000-AB - Ford variant
• F5TU-11000-AD - Ford variant

MOTORCRAFT OEM:
• SA-817 - Motorcraft reference
• SA-817-RM - Motorcraft remanufactured

SPECIFICATIONS:
• Type: Starter Motor - High Torque Upgrade
• Unit Type: Denso
• Design: OSGR (Offset Gear Reduction)
• Voltage: 12V
• Power: 4.0kW / 5.38HP
• Rotation: CW (Clockwise)
• Tooth Count: 13
• Gear OD: 39mm / 1.535 in
• Mounting: 2-Bolt (Replaces 3-Bolt Mitsubishi)
• Mounting Ear 1: 11.0mm ID Unthreaded
• Mounting Ear 2: 11.0mm ID Unthreaded
• Weight: 23.4 lbs / 10.64 kgPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FORD F-SERIES TRUCKS (7.3L POWERSTROKE DIESEL):
• F-250 - 7.3L (445) V8 Diesel - 1994-1996
• F-250 Super Duty - 7.3L (445) V8 Diesel - 1999-2003
• F-350 - 7.3L (445) V8 Diesel - 1994-1997
• F-350 Super Duty - 7.3L (445) V8 Diesel - 1999-2003
• F-450 Super Duty - 7.3L (445) V8 Diesel - 1999-2003
• F-550 Super Duty - 7.3L (445) V8 Diesel - 1999-2003
• F Super Duty - 7.3L (445) V8 Diesel - 1995-1997

FORD E-SERIES VANS (7.3L DIESEL):
• E-350 Econoline - 7.3L (445) V8 Diesel - 1995-2002
• E-350 Econoline Club Wagon - 7.3L (445) V8 Diesel - 1995-2000
• E-450 Econoline Super Duty - 7.3L (445) V8 Diesel - 2000-2002
• E-450 Super Duty - 7.3L (445) V8 Diesel - 2003
• E-550 Econoline Super Duty - 7.3L (445) V8 Diesel - 2002
• E-550 Super Duty - 7.3L (445) V8 Diesel - 2003
• Econoline Super Duty - 7.3L (445) V8 Diesel - 1996-1999

FORD EXCURSION:
• Excursion - 7.3L (445) V8 Diesel - 2000-2003

FORD MEDIUM/HEAVY DUTY TRUCKS:
• 450 Series - 7.3L (446) Diesel - 1999-2000
• 550 Series - 7.3L (446) Diesel - 1999-2000

ENGINE:
• Ford/Navistar 7.3L Power Stroke T444E Turbo Diesel V8 (445 CID)

INSTALLATION NOTE:
This Denso 2-bolt mounting style replaces original Mitsubishi 3-bolt starters. Higher torque for improved cold-weather starting. On some F-250 models, cross member may require modification. Battery cable end tabs may need trimming for proper fit.
