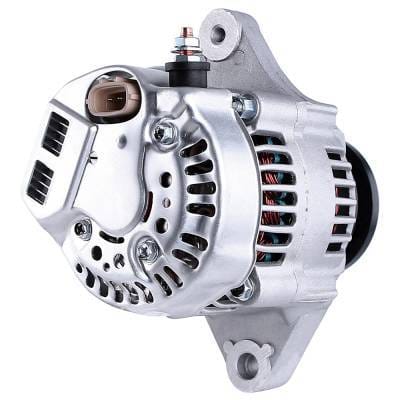

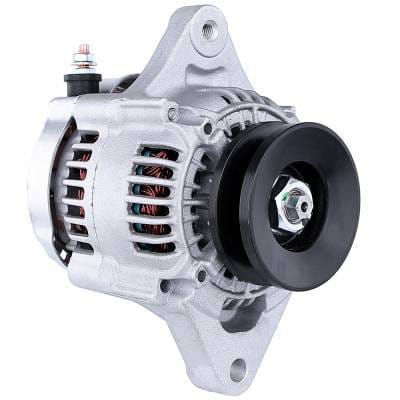

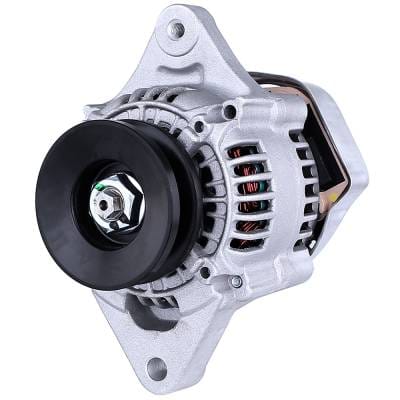

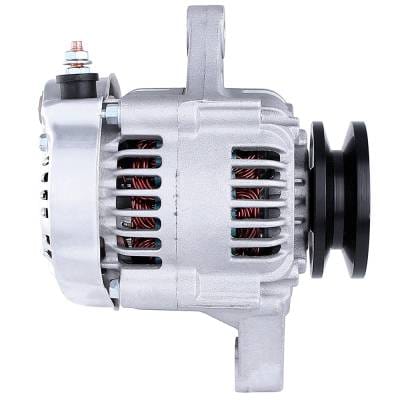

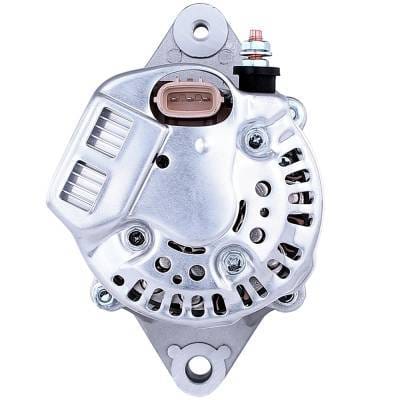

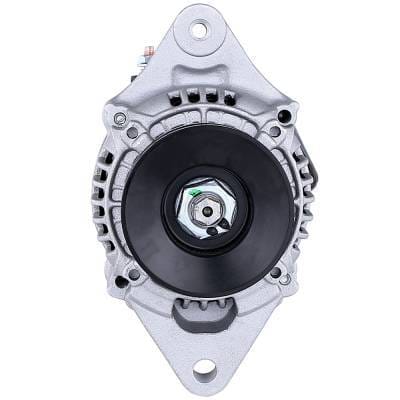

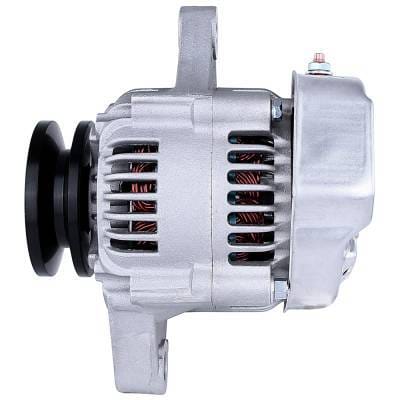

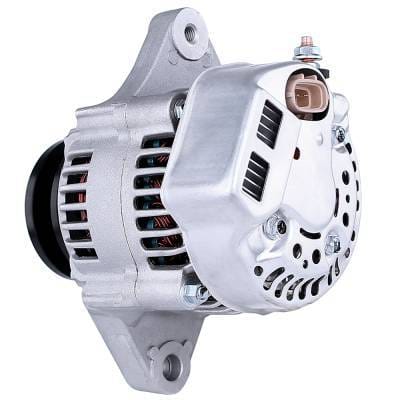

12V 40 Amp Alternator Compatible With 2001-2017 Tb016 Tb125 Tb228 Tb235 Tb250 Tl130 Tl230 Tl240

OEM PART NUMBERS:
• Nippondenso: 101211-1380
• Yanmar: 129240-77200 / Y129240-77200
• Lucas: LRA03547

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 40A
• Rotation: CW (Clockwise)
• Type: Permanent Magnet
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Pulley: 1-Groove Solid V-Belt, 69mm OD
• Regulator Clock: 12:00
• Polarity: Negative
• Output Stud: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.4mm Unthreaded
• Weight: 7.46 lbs / 3.39 kg
• Condition: New

APPLICATION:
• TB016/TB125/TB135/TB145 Excavator Yanmar Diesel (2004-2014)
• TB53FR/TB153FR/TB228/TB235/TB250 Excavator Yanmar Diesel (2004-2017)
• TL130/TL220/TL230/TL240 Track Loader Yanmar Diesel (2001-2014)

Permanent Magnet Alternator - Mini Excavators and CTL Equipment
Brand new 40-amp alternator for Yanmar 3TNV and 4TNV series diesel engines in compact construction equipment. This 12-volt permanent magnet unit features clockwise rotation, 1-groove solid V-belt pulley at 69mm OD, and internal regulator/fan at 12:00 position. Negative polarity with M6-1.0 output stud. Dual mounting configuration includes M8-1.25 threaded upper ear and 10.4mm unthreaded lower ear. Compact 7.46 lb design fits mini excavators and compact track loaders from 2001-2017. Replaces Nippondenso 101211-1380 and Yanmar 129240-77200.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EXCAVATORS - MINI/COMPACT:
• TB016 Yanmar 3TNV70 Diesel (2005-2014)
• TB125 Yanmar 3TNV82 Diesel (2005-2008)
• TB135 Yanmar 3TNV88 Diesel (2004-2008)
• TB145 Yanmar 4TNV88 Diesel (2004-2008)

EXCAVATORS - ZERO TAIL/CONVENTIONAL:
• TB53FR Yanmar 3TNV88 Diesel (2004-2008)
• TB153FR Yanmar 3TNV88 Diesel (2006-2015)
• TB228 Yanmar 4TNV88 Diesel (2008-2016)
• TB235 Yanmar 3TNV88 Diesel (2008-2017)
• TB250 Yanmar 4TNV88 Diesel (2008-2015)

COMPACT TRACK LOADERS:
• TL130 Yanmar 4TNV98 Diesel (2001-2008)
• TL220 Yanmar Diesel (2008-2014)
• TL230 Yanmar Diesel (2008-2014)
• TL240 Yanmar Diesel (2008-2014)

NOTE: Verify OEM part number from your original unit before ordering to ensure proper fitment.
