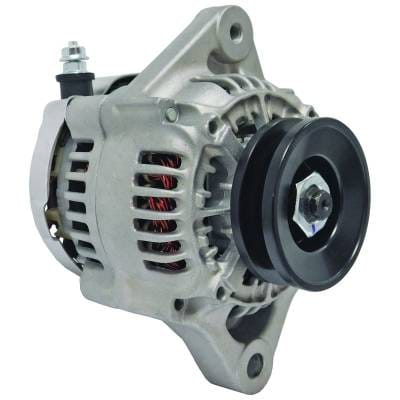

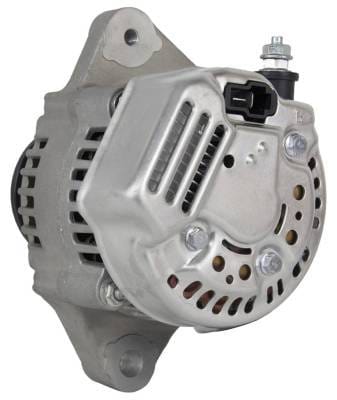

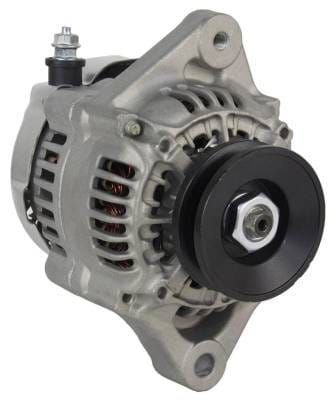

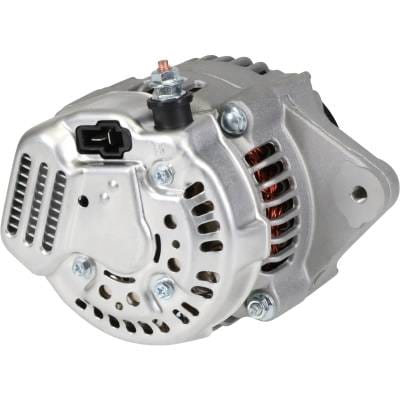

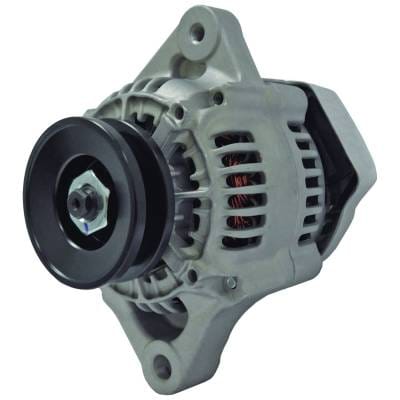

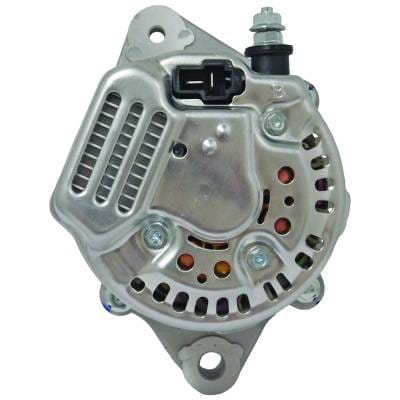

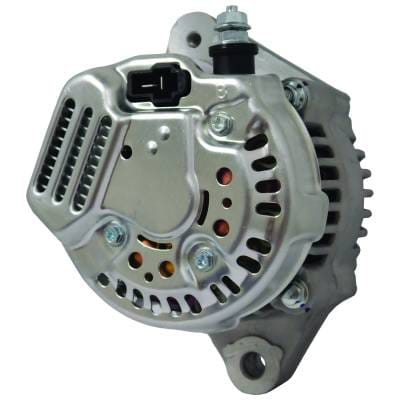

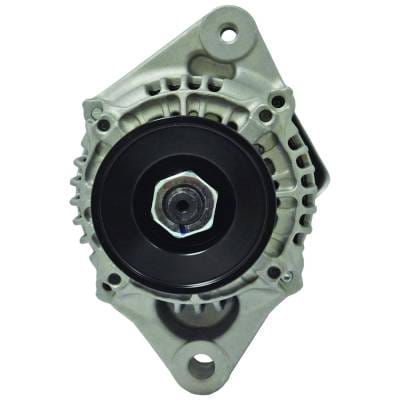

12V 40 Amp Alternator Compatible With 1998-2012 5234De 5234Dl 5264De 5264Dl 7264 Kaf950 Mule 2510

OEM PART NUMBERS:
• Toyota: 27060-55011 (2706055011)
• Toyota: 27060-55030 (2706055030)
• Toyota: 27060-87212 (2706087212)
• Denso: 100211-3050 (1002113050)
• Denso: 100211-3051 (1002113051)
• Denso: 100211-3240 (1002113240)
• Denso: 100211-4620 (1002114620)
• Denso: 100211-4621 (1002114621)
• Denso: 100211-4630 (1002114630)
• Denso: 100211-4631 (1002114631)
• Briggs & Stratton: 825084
• Daihatsu: 27060-87211 (2706087211, 27060-87211-000)
• Daihatsu: 27060-87212 (2706087212, 27060-87212-000)
• Daihatsu: 27060-87510 (2706087510, 27060-87510-000)
• Kawasaki: 21001-1176
• Toro: 99-9209
• Cub Cadet: BS-825084

SPECIFICATIONS:
• Type: Alternator
• Manufacturer Type: Denso / Toyota
• Voltage: 12V
• Amperage: 40 Amps
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Regulator Clock: 12:00
• Pulley: V-Belt, 1 Groove
• B+ Terminal: M6x1.00
• Polarity: Negative Ground
• Weight: 6.9 lbs / 3.14 kg

FITS CUB CADET COMPACT TRACTORS:
• 5234DE - Daihatsu 23HP Diesel (2004-2006)
• 5234DL - Daihatsu 23HP Diesel (2004-2006)
• 5264DE - Daihatsu 26HP Diesel (2006-2012)
• 5264DL - Daihatsu 26HP Diesel (2006-2012)
• 7264 - Daihatsu 21HP Diesel (1998-2004)

FITS KAWASAKI UTILITY VEHICLES:
• KAF950 Mule 2510 Diesel 953cc (2000-2002)
• KAF950 Mule 3010 Diesel 4x4 953cc (2003-2008)
• KAF950 Mule 3010 Diesel Trans 4x4 953cc (2007-2008)
• KAF950 Mule 4010 Diesel 4x4 953cc (2009-2013)
• KAF950 Mule 4010 Diesel Trans 4x4 953cc (2009-2013)

FITS TORO COMMERCIAL MOWERS:
• Greensmaster 3200 - Daihatsu Engine (1995-1999)
• Greensmaster 3250-D - Daihatsu Diesel
• Grounds Pro 2000-D
• Reelmaster 2000-D
• Workman 3200, 3300-D, 4200, 4300-D
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CUB CADET COMPACT TRACTORS:

5234DE:
• 5234DE Compact Tractor - Daihatsu 23HP Diesel - Denso System - 2004, 2005, 2006

5234DL:
• 5234DL Compact Tractor - Daihatsu 23HP Diesel - Denso System - 2004, 2005, 2006

5264DE:
• 5264DE Compact Tractor - Daihatsu 26HP Diesel - Denso System - 2006, 2007, 2008, 2009, 2010, 2011, 2012

5264DL:
• 5264DL Compact Tractor - Daihatsu 26HP Diesel - Denso System - 2006, 2007, 2008, 2009, 2010, 2011, 2012

CUB CADET UTILITY TRACTORS:

7264:
• 7264 Utility Tractor - Daihatsu 21HP Diesel - Denso System - 1998, 1999, 2000, 2001, 2002, 2003, 2004

KAWASAKI UTILITY VEHICLES:

KAF950 MULE 2510:
• KAF950 Mule 2510 Diesel - 953cc - 2000, 2001, 2002

KAF950 MULE 3010:
• KAF950 Mule 3010 Diesel 4x4 - 953cc - 2003, 2004, 2005, 2006, 2007, 2008
• KAF950 Mule 3010 Diesel Trans 4x4 - 953cc - 2007, 2008

KAF950 MULE 4010:
• KAF950 Mule 4010 Diesel 4x4 - 953cc - 2009, 2010, 2011, 2012, 2013
• KAF950 Mule 4010 Diesel Trans 4x4 - 953cc - 2009, 2010, 2011, 2012, 2013

TORO COMMERCIAL MOWERS:

GREENSMASTER:
• Greensmaster 3200 - Daihatsu Engine - 1995, 1996, 1997, 1998, 1999
• Greensmaster 3250-D - Daihatsu Diesel Engine

GROUNDS PRO / REELMASTER:
• Grounds Pro 2000-D - Daihatsu Diesel Engine
• Reelmaster 2000-D - Daihatsu Diesel Engine

WORKMAN:
• Workman 3200 - Daihatsu Diesel Engine
• Workman 3300-D - Daihatsu Diesel Engine
• Workman 4200 - Daihatsu Diesel Engine
• Workman 4300-D - Daihatsu Diesel Engine

NOTES:
• All applications use Daihatsu diesel engines with Denso charging system
• Verify OEM part number from your original unit before ordering
