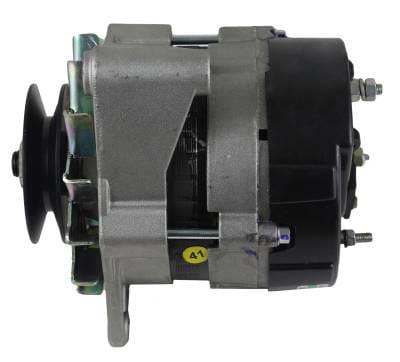

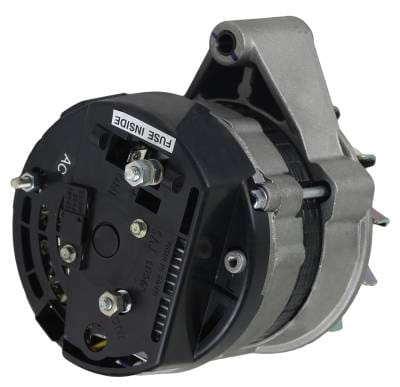

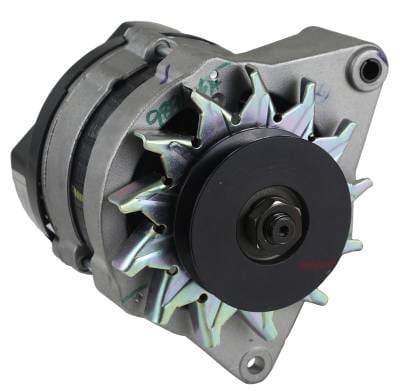

12V 36 Amp Alternator Compatible With Mahindra 475 485 575 2810 3325 3505 3510 E350 Tractor Lucas

OEM PART NUMBERS:
• Lucas TVS: 26021268

SPECIFICATIONS:
• Family: Lucas A115
• Voltage: 12V
• Amperage: 36A
• Rotation: CW (Clockwise)
• Fan: External
• Regulator: Internal
• Polarity: Negative
• Pulley: Solid, 1 Groove, 72.8mm / 2.866" OD
• Mount Hole 1: M8x1.25 Threaded
• Mount Hole 2: Unthreaded
• B+ Terminal: M6x1.00
• D+ Terminal: Spade
• Weight: 11 lbs
• Condition: New

APPLICATION:
• Mahindra E350, 475/475 DI, 485/485 DI, 575/575 DI
• Mahindra 2810, 3325, 3505, 3510, 3525
• Mahindra 4005, 4025, 4035, 4110, C4005
• Mahindra 4500, 4505, 4525
• Mahindra 5005, 5500, 5530
• Mahindra 6500, 6530

12V 36A Alternator — Mahindra Agricultural Tractors Lucas A115
New 12V 36 amp alternator for Mahindra agricultural tractors using the Lucas A115 platform. Fits the E350, 475, 475 DI, 485, 485 DI, 575, 575 DI, 2810, 3325, 3505, 3510, 3525, 4005, 4025, 4035, 4110, 4500, 4505, 4525, 5005, 5500, 5530, 6500, 6530, and C4005. Features external fan cooling with internal voltage regulator, clockwise rotation, and negative polarity. Solid single-groove pulley with 72.8mm (2.866") outer diameter. Spool mount design with M8x1.25 threaded primary ear and unthreaded secondary ear. M6x1.00 B+ terminal and spade-type D+ terminal. Weighs 11 lbs. Direct replacement for Lucas TVS 26021268.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MAHINDRA COMPACT TRACTORS:
• E350
• 475 / 475 DI
• 485 / 485 DI
• 575 / 575 DI

MAHINDRA 2000-3000 SERIES:
• 2810
• 3325
• 3505
• 3510
• 3525

MAHINDRA 4000 SERIES:
• 4005
• 4025
• 4035
• 4110
• 4500
• 4505
• 4525
• C4005

MAHINDRA 5000-6000 SERIES:
• 5005
• 5500
• 5530
• 6500
• 6530

NOTE: Verify OEM part number 26021268 from your original unit before ordering to ensure proper fitment.
