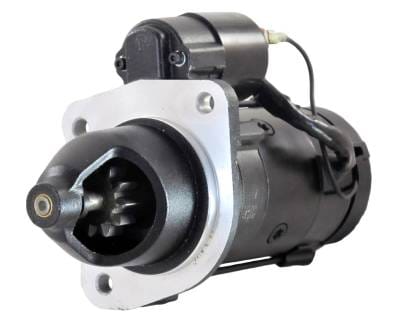

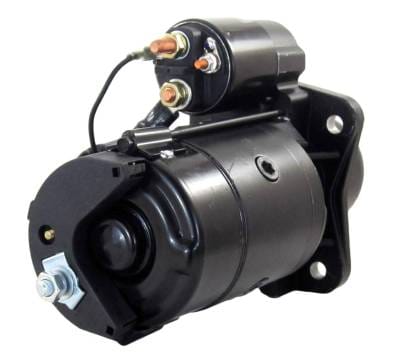

12V 3.1Kw Starter Motor Compatible With Volvo Penta Aqad30a Aqad31a Aqad41a Aqd40a Aqd41a Diesel

VOLVO PENTA OEM PART NUMBERS:
• 859252 / 859252-9 / 859252X
• 3581774
• 3803118
• 3803200
• 3803386
• 3803113
• 829527-1

VALEO:
• D9R116
• D9R144
• D11E167T

SPECIFICATIONS:
• Voltage: 12V
• Power: 3.1 kW
• Type: OSGR (Offset Gear Reduction) - Valeo Unit
• Rotation: CW (Clockwise)
• Tooth Count: 11
• Mounting: Three ears, 10.3mm ID unthreaded
• Ground Stud: M8-1.25 threaded
• Weight: 14 lbs / 6.36 kg

FITS VOLVO PENTA DIESEL ENGINES:
• AD31A, AQAD30A, AQAD31A, AQAD32, AQAD40A, AQAD41, AQAD41A
• AQD40A, AQD41, AQD41A
• KAD32P, KAD42A, KAMD42A
• MD30A, TAMD30A, TAMD31L/M/P
• TAMD41A/B/D/H/M/P, TMD30A, TMD31A, TMD40A, TMD41A
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
VOLVO PENTA AD SERIES (VALEO SYSTEM):
• AD31A - All Years - Valeo System

VOLVO PENTA AQAD SERIES (VALEO SYSTEM):
• AQAD30A - All Years - Valeo System
• AQAD31A - All Years - Valeo System
• AQAD32 - All Years - Valeo System
• AQAD40A - All Years - Valeo System
• AQAD41 - All Years - Valeo System
• AQAD41A - All Years - Valeo System

VOLVO PENTA AQD SERIES (VALEO SYSTEM):
• AQD40A - All Years - Valeo System
• AQD41 - All Years - Valeo System
• AQD41A - All Years - Valeo System

VOLVO PENTA KAD / KAMD SERIES (VALEO SYSTEM):
• KAD32P - All Years - Valeo System
• KAD42A - All Years - Valeo System
• KAMD42A - All Years - Valeo System

VOLVO PENTA MD SERIES (VALEO SYSTEM):
• MD30A - All Years - Valeo System

VOLVO PENTA TAMD SERIES (VALEO SYSTEM):
• TAMD30A - All Years - Valeo System
• TAMD31L, TAMD31M, TAMD31P - All Years - Valeo System
• TAMD41A, TAMD41B, TAMD41D, TAMD41H, TAMD41M, TAMD41P - All Years - Valeo System

VOLVO PENTA TMD SERIES (VALEO SYSTEM):
• TMD30A - All Years - Valeo System
• TMD31A - All Years - Valeo System
• TMD40A - All Years - Valeo System
• TMD41A - All Years - Valeo System

NOTE:
• This OSGR Valeo type starter fits Valeo system equipped Volvo Penta engines only
• Verify your engine has the Valeo starter system before ordering
• Also replaces older DD/Case type starters (Item 16464) as an upgrade
