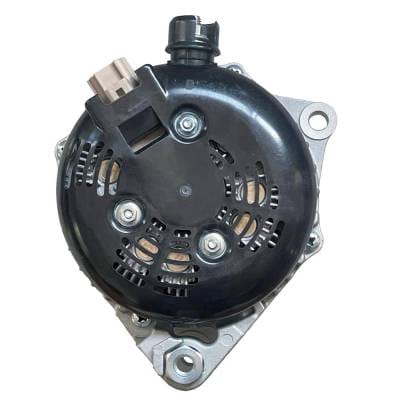

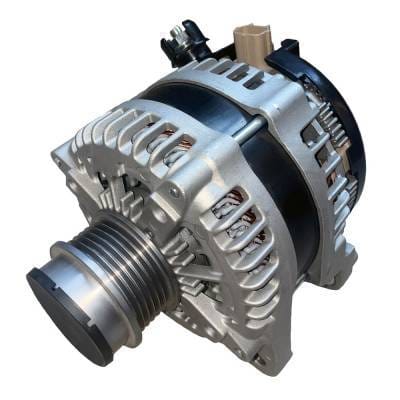

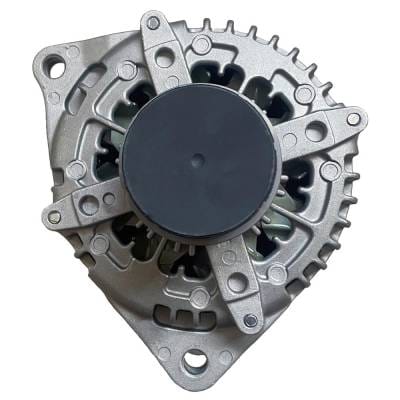

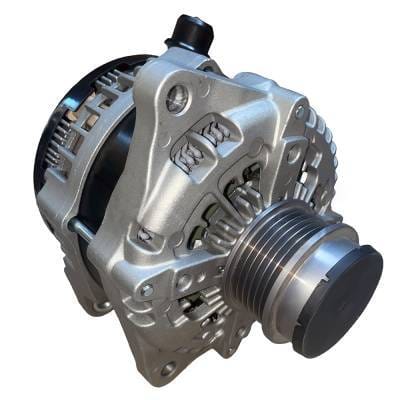

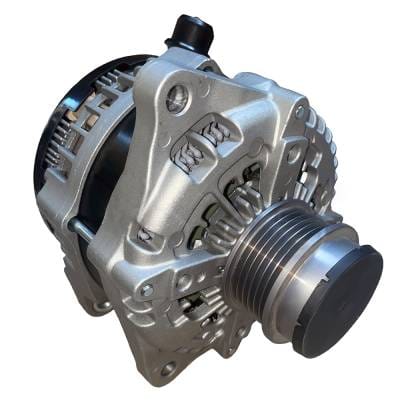

12V 250A Alternator Compatible With Ford F-150 Hl3t-10300-Ba Hl3z-10346-B 2.7L 3.3L 3.5L V6

OEM PART NUMBERS:
• HL3T-10300-BA - Ford Engineering part number
• HL3T10300BA - Ford Engineering (no dashes)
• HL3Z-10346-B - Ford Assembly part number
• HL3Z10346B - Ford Assembly (no dashes)
• 104211-0820 - Denso manufacturer part number
• 1042110820 - Denso (no dashes)
• TN104211-0820 - Denso (TN prefix variant)
• GL-8833 - Motorcraft service number
• GL8833 - Motorcraft (no dash)

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 250 Amp
• Rotation: CW (Clockwise)
• Pulley Type: 6-Groove Clutch Decoupler
• Pulley Class: SD6
• Pulley OD: 57.25mm
• Fan Position: Internal
• Regulator Position: Internal
• Plug Orientation: Side mount
• Alternator Series: Denso Hairpin PMA
• Mounting: Direct OEM bolt-on replacement

FITS FORD F-150 (2017-2020):
• 3.5L EcoBoost V6 (213cid) - XL, XLT, Lariat, King Ranch, Platinum, Limited
• 2.7L EcoBoost V6 (164cid) - XL, XLT, Lariat
• 3.3L Ti-VCT V6 (201cid) - XL, XLT (2019-2020 only)
• With 110V power converter / inverter packagePRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
FORD F-150 ALTERNATOR FITMENT - 2017-2020 V6 ENGINES WITH POWER CONVERTER:

3.5L V6 ECOBOOST TWIN TURBO (213cid) - 375 HP / 470 LB-FT:
• Ford F-150 XL 3.5L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 XLT 3.5L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 Lariat 3.5L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 King Ranch 3.5L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 Platinum 3.5L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 Limited 3.5L EcoBoost High Output - 2017, 2018, 2019, 2020

2.7L V6 ECOBOOST TWIN TURBO (164cid) - 325 HP / 400 LB-FT:
• Ford F-150 XL 2.7L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 XLT 2.7L EcoBoost - 2017, 2018, 2019, 2020
• Ford F-150 Lariat 2.7L EcoBoost - 2017, 2018, 2019, 2020

3.3L V6 Ti-VCT (201cid) - 290 HP / 265 LB-FT:
• Ford F-150 XL 3.3L V6 Ti-VCT - 2019, 2020
• Ford F-150 XLT 3.3L V6 Ti-VCT - 2019, 2020

BODY CONFIGURATIONS:
• Regular Cab (Standard Cab) - 2-Door with 6.5 ft or 8 ft bed
• SuperCab (Extended Cab) - 4-Door with 6.5 ft or 8 ft bed
• SuperCrew (Crew Cab) - 4-Door with 5.5 ft or 6.5 ft bed

DRIVETRAIN OPTIONS:
• 4x2 (Two-Wheel Drive / RWD)
• 4x4 (Four-Wheel Drive / 4WD)

TRANSMISSION OPTIONS:
• 6-Speed Automatic (6R80) - 2017 with 3.5L EcoBoost
• 10-Speed Automatic (10R80) - 2017-2020

FITMENT NOTES:
• For vehicles equipped with 110V power converter (inverter) package
• Higher electrical demand configurations: heated seats, rear defrost, inverter
• Snow plow prep package vehicles may also require this alternator
• Does NOT fit 5.0L V8 Coyote engine (uses different alternator)
• Does NOT fit Raptor (uses High Output 3.5L with different electrical system)
• Police Responder and SSV models with V6 may also use this alternator
• Always verify OEM part number from your original alternator before ordering
