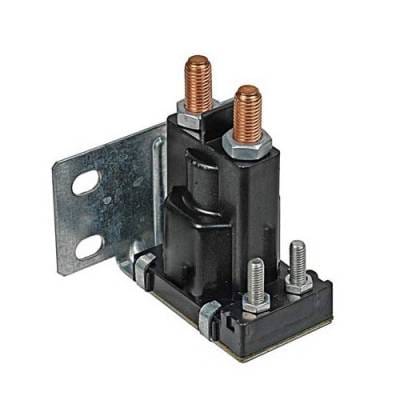

12V 100 Amp Continuous Duty Solenoid 4 Terminal Spst Compatible With White Rodgers 120-907

OEM PART NUMBERS:
• White Rodgers: 120-907
• White Rodgers: 120-105112
• White Rodgers: 120-105112-1
• White Rodgers: 120-105112-2
• White Rodgers: 120-907S1
• J&N Electrical: 240-01016

SPECIFICATIONS:
• Type: Continuous Duty Solenoid
• Voltage: 12V DC
• Continuous Amps: 100A
• Surge Amps: 400A
• Terminals: 4
• Circuit: SPST (Single Pole Single Throw)
• State: Normally Open
• Coil: Isolated
• Duty Cycle: Continuous
• Mounting: Flat 180 (F180)
• Case Material: Plastic
• Contact Material: Silver Alloy
• Hardware: Included

CAUTION: Always use a back-up wrench to hold the bottom nut when tightening.
NOTE: Use caution in coil selection for 12V systems where battery charging may expose coil to continuous higher than rated voltage.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
UNIVERSAL APPLICATIONS:

HYDRAULIC PUMP MOTORS:
• Dump Trailers
• Dump Trucks
• Liftgates
• Hydraulic Power Units

SNOW PLOW EQUIPMENT:
• Snow Plow Hydraulic Motors
• Salt Spreaders

WINCH APPLICATIONS:
• 12V DC Winch Motors
• Tow Truck / Wrecker Winches

RV / MOTORHOME:
• Battery Isolators
• Leveling Systems
• Slide-Out Motors

ADDITIONAL APPLICATIONS:
• Golf Carts
• ATV / UTV Accessories
• Marine Equipment
• Agricultural Equipment
• Auto Lifts / Tire Changers
• Boat Lifts / Boat Hoists

NOTE: This item fits various applications by part number. Verify your part number before ordering to ensure fitment.
