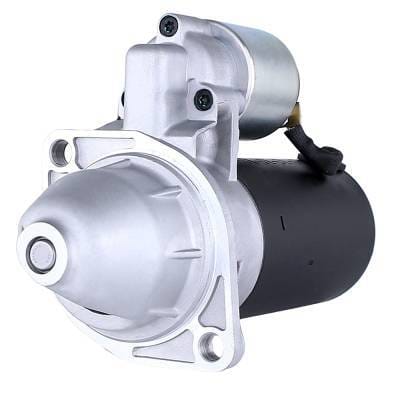

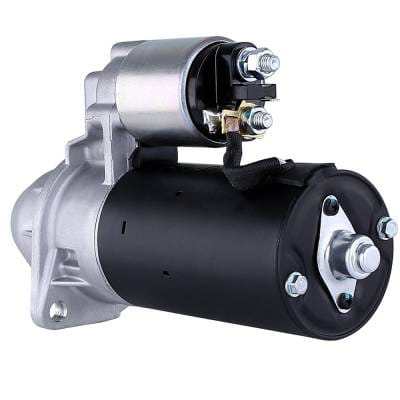

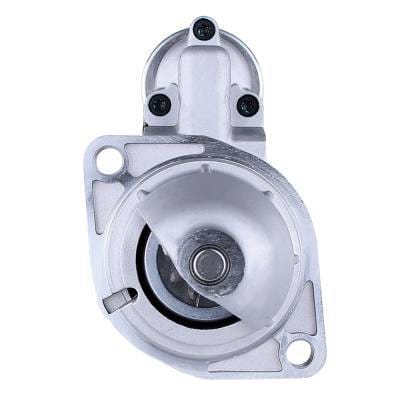

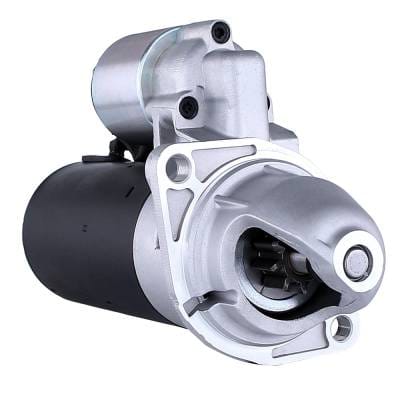

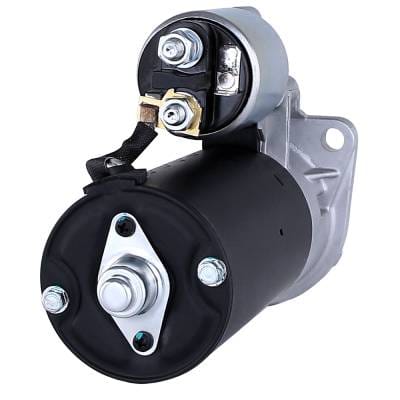

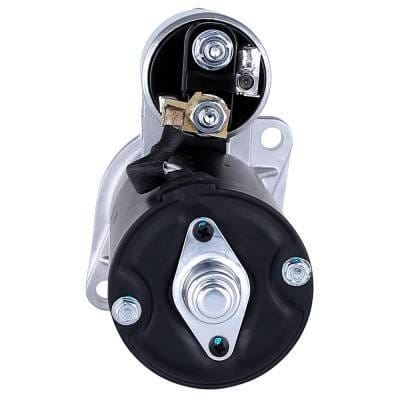

12V 1.9Kw Starter Compatible With Lombardini Ldw702 Ldw1003 Ldw1404 Engine 0-001-115-034

BOSCH OEM PART NUMBERS:
• 0-001-108-210 (0001108210)
• 0-001-109-009 (0001109009)
• 0-001-110-042 (0001110042)
• 0-001-115-034 (0001115034)
• 0-001-115-035 (0001115035)
• 0-001-314-001 (0001314001)
• 0-986-022-500 (0986022500)
• 1986S00762
• F002G70047

LOMBARDINI/KOHLER OEM PART NUMBERS:
• 1-005-821-194 (1005821194)
• 5821194
• 5840147 (58401470)
• 5840224 (58402240)
• 5840081
• 5340147
• 6554
• ED0058402240-S

LUCAS PART NUMBERS:
• LRS1439 (LRS01439)
• LRS4007 (LRS04007)

SPECIFICATIONS:
• Voltage: 12V
• Power Output: 1.9KW
• Rotation: CW (Clockwise)
• Starter Type: PMGR (Permanent Magnet Gear Reduction)
• Unit Type: Bosch Type
• Number of Teeth: 9
• Mounting Flange: 76mm
• Mounting Holes: 2x 10.6mm ID
• Weight: 8 lbsPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
LOMBARDINI ENGINE APPLICATIONS:
• LDW502 Diesel Engine
• LDW602 Diesel Engine
• LDW702 Diesel Engine
• LDW903 Diesel Engine
• LDW1003 Diesel Engine
• LDW1204 Diesel Engine
• LDW1204/T Diesel Engine (Turbocharged)
• LDW1404 Diesel Engine (6554)
• 7LD 665F Engine (1992)
• 7LD 665F Engine (1993)
• 7LD 665F Engine (1994+)
• 7LD 740F Engine (1992)
• 7LD 740F Engine (1993)
• 7LD 740F Engine (1994+)
• 8LD 740.2 Engine (1992)
• 8LD 740.2 Engine (1993)
• 8LD 740.2 Engine (1994+)
• 9LD 561.2 Engine (1992)
• 9LD 561.2 Engine (1993)
• 9LD 561.2 Engine (1994+)
• 9LD 625.2 Engine (1992)
• 9LD 625.2 Engine (1993)
• 9LD 625.2 Engine (1994+)

KOHLER ENGINE APPLICATIONS:
• KDW502 Diesel Engine
• KDW702 Diesel Engine
• KDW1003 Diesel Engine
• KDW1404 Diesel Engine

WACKER NEUSON EQUIPMENT:
• RD18 (RD-18) Tandem Roller - 3 Cylinder Lombardini
• RT82 (RT-82) Trench Roller Compactor - Lombardini Diesel

FARM & INDUSTRIAL EQUIPMENT:
• BCS Farm Equipment - Lombardini Diesel
• Ferrari Agricultural Equipment - Lombardini Diesel
• Goldoni Farm Equipment - Lombardini Diesel
• MTU Diesel Generators
• Various Industrial Generator Sets
