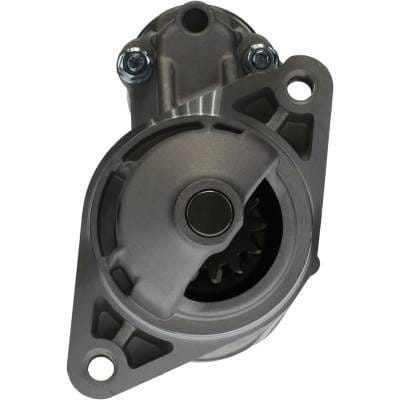

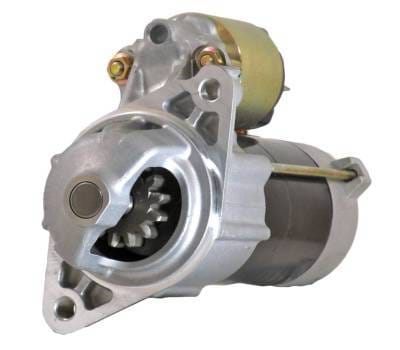

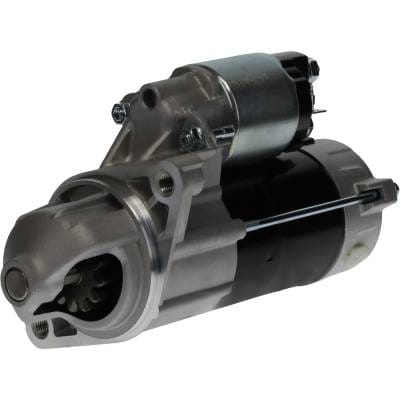

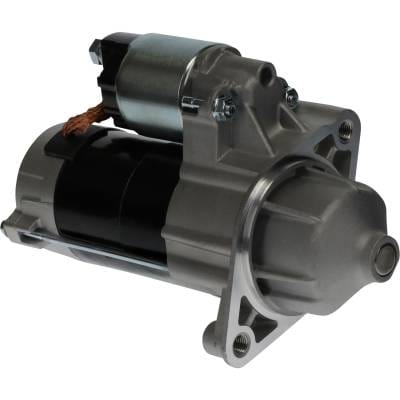

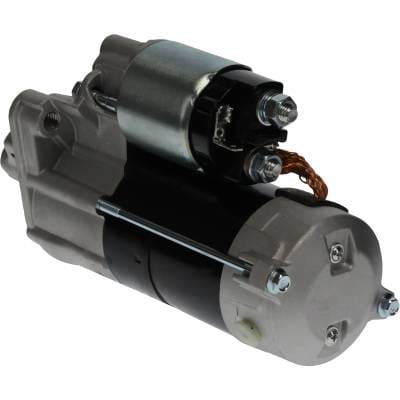

12V 1.1Kw Starter Motor Compatible With 2005-2007 St22a Mt225b 2008-2012 Gc2300 Gc2310 Gc2600 Gc2610

DENSO / NIPPONDENSO OEM PART NUMBERS:
• 228000-8160 (2280008160)
• 228000-8161 (2280008161)
• 228000-9450 (2280009450)
• 228000-9451 (2280009451)
• S114370
• S114370A

ISEKI OEM PART NUMBERS:
• 6281-100-014 (6281100014)
• 6281-100-014-00 (628110001400)
• 6281-100-023-00 (628110002300)

MASSEY FERGUSON OEM PART NUMBERS:
• 3608543M91
• 368543M91

SPECIFICATIONS:
• Product Type: Starter Motor
• Starter Type: PLGR (Planetary Gear Reduction)
• Voltage: 12V
• Power: 1.1kW (1.47 HP)
• Rotation: CW (Clockwise)
• Teeth: 13
• Gear OD: 38mm (1.496 in)
• Mounting: Dual M10x1.25 Threaded Ears
• Weight: 6 lbs (2.72 kg)
• Condition: New Aftermarket

FITS MASSEY FERGUSON:
• GC1750 Compact Tractor
• GC2300 / GC2310 Compact Tractor (2008-2012)
• GC2400 / GC2410 / GC2410TLB Compact Tractor (2008-2012)
• GC2600 / GC2610 / GC2610TLB Compact Tractor (2008-2012)

FITS AGCO:
• ST22A 4WD Compact Tractor (2005-2007)
• ST24A 4WD / Hydro Compact Tractor (2005-2008)

FITS AGCO CHALLENGER:
• MT225B Compact Tractor (2005-2007)

FITS ISEKI:
• SXG323H Mower, SXG15, SXG19, SXG22, SXG216, SXG326
• SF370 Mower, TM3240 Tractor, TXG23, TXG237 Series
• Engines: E3112 (1.1L), E3100, E374 3-Cylinder DieselPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MASSEY FERGUSON COMPACT TRACTORS:

GC1750:
• GC1750 Compact Tractor - Iseki E3112 3-Cylinder Diesel

GC2300 / GC2310:
• GC2300 Compact Tractor - Iseki 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012
• GC2310 Compact Tractor - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012

GC2400 / GC2410:
• GC2400 Compact Tractor - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012
• GC2410 Compact Tractor - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012
• GC2410TLB Compact Tractor Loader Backhoe - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012

GC2600 / GC2610:
• GC2600 Compact Tractor - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012
• GC2610 Compact Tractor - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012
• GC2610TLB Compact Tractor Loader Backhoe - Iseki 1.1L 3-Cylinder Diesel - 2008, 2009, 2010, 2011, 2012

AGCO TRACTORS:

ST22A:
• ST22A 4WD Compact Tractor - Iseki 3-68 Diesel - 2005, 2006, 2007

ST24A:
• ST24A 4WD Compact Tractor - Iseki 3-68 Diesel - 2005, 2006, 2007, 2008
• ST24A 4WD Hydro Compact Tractor - Iseki 3-68 Diesel - 2005, 2006, 2007, 2008

AGCO CHALLENGER:

MT225B:
• MT225B Compact Tractor - Iseki 3-68 Diesel - 2005, 2006, 2007

ISEKI:

MOWERS / TRACTORS:
• SXG323H Compact Tractor / Riding Mower
• SXG15, SXG19, SXG22, SXG216, SXG323, SXG326 Mower Series
• SF370 Mower
• TM3240 Tractor
• TXG23, TXG237 Tractor Series

ISEKI ENGINES:
• E3112 - 3-Cylinder Diesel (1.1L)
• E3100 - 3-Cylinder Diesel
• E374 - 3-Cylinder Diesel

FITMENT NOTES:
• Fits Iseki-powered compact tractors with Denso PLGR starter
• 13-tooth pinion gear, clockwise rotation
• Dual M10x1.25 threaded mounting ear pattern
• Verify OEM part number from your original unit before ordering
