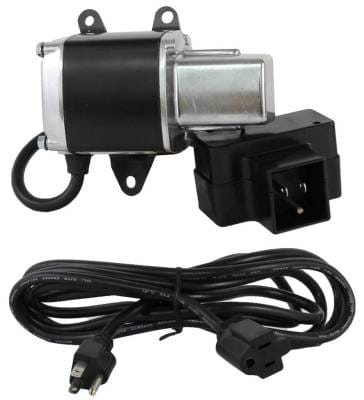

120V Electric Starter Motor Compatible With Tecumseh Snow King Hsk30 Hsk40 Hssk40 Hssk50 Hssk55

TECUMSEH OEM PART NUMBERS:
• 33290 (Primary)
• 33290A, 33290B, 33290C
• 33290D, 33290E, 33290F, 33290H
• 33517, 33517A, 33517B
• 34601, 34601A, 34601B, 34601C
• 35251, 35459, 35459A, 35460, 35601A
• 8893, 88931, 88932, 88933, 88934

ARIENS PART NUMBERS:
• 72200600

MTD PART NUMBERS:
• 390-985
• 390-986-000

AFTERMARKET PART NUMBERS:
• 5897, 5897N
• STC0015
• 410-22032, 41022032
• 214-10702, MS-6015
• 2-2267
• Oregon 33-736
• Rotary 10975
• Stens 435-627
• 71-35-5897, 91-35-1020

SPECIFICATIONS:
• Voltage: 120V AC
• Rotation: CCW (Counter-Clockwise)
• Teeth: 9
• Type: PMDD (Permanent Magnet Direct Drive)
• Gear OD: 26.6mm / 1.047"
• Mounting: 3x Unthreaded Ears (6.75mm, 8mm, 6.75mm)
• Weight: 4.72 lbs / 2.15 kgPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
TECUMSEH INDUSTRIAL ENGINE APPLICATIONS:
• Tecumseh H30 - Horizontal 3.0HP Industrial Engine
• Tecumseh H35 - Horizontal 3.5HP Industrial Engine
• Tecumseh HS40 - Horizontal Snow 4.0HP Engine
• Tecumseh HS50 - Horizontal Snow 5.0HP Engine
• Tecumseh HXL35 - Horizontal XL 3.5HP Engine

ADDITIONAL COMPATIBLE ENGINES (3-7HP Small Frame):
• Tecumseh H40, H50 - Horizontal Series
• Tecumseh HSK30, HSK40 - Horizontal Snow King
• Tecumseh HSSK40, HSSK50, HSSK55 - Snow Series
• Tecumseh LH195, OH195 - Overhead Valve
• Tecumseh OHH50, OHH55, OHH60 - OHV Series
• Tecumseh OHSK50, OHSK55, OHSK60, OHSK65, OHSK70 - OHV Snow King

MTD SNOW BLOWER MODELS:
• MTD 317E623D190
• MTD 317E653F190
• MTD 31AE623D190

SNOW BLOWER/THROWER BRANDS:
• Ariens Snow Blowers - Various Models with Tecumseh Engines
• MTD Snow Blowers - Various Models with Tecumseh Engines
• Craftsman Snow Throwers - Various Models with Tecumseh Engines
• Toro Snow Blowers - Various Models with Tecumseh Engines
• Murray Snow Blowers - Various Models with Tecumseh Engines
• Cub Cadet Snow Equipment
• Yard Machines Snow Blowers

APPLICATION NOTES:
• 120V AC Electric Start - Plug into standard household outlet
• For 3HP through 5HP small frame engines
• 5HP through 7HP OHV engines
• Engine must have ring gear to accept starter
