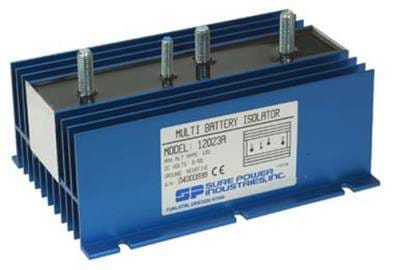

120 Amp Battery Isolator Compatible With Dual Battery Systems Ems Fire Truck Rv Marine Sure Power

OEM PART NUMBERS:
• Sure Power/Eaton: 12023A
• Sure Power: 12023A-L
• Sure Power: 12023A-IB
• Sure Power: 12023A-D
• Sure Power: 12023A-DL
• Sure Power: 12023A-B
• Sure Power: I01202-3A
• Cooper Bussmann: RB-BI120A
• Powerline: 22-18

SPECIFICATIONS:
• Amperage: 120 Amps Maximum
• Input Voltage Range: 6V - 50V DC
• Number of Inputs: 1
• Number of Battery Banks: 2
• Ground Type: Negative
• Ignition Terminal: Yes
• Sense Terminal: No
• Operating Temp: -40°C to +93°C
• Insulation to Ground: 500V 60Hz AC Min
• Finish: Blue Anodized (336 hr salt spray rated per ASTM B117)
• Studs: 4
• Mounting Holes: 6 at 0.21"
• Length: 7.48" / 190mm
• Width: 4.528" / 115mm
• Height: 3.307" / 84mm
• Technology: Solid-State Electronics
• Mounting Hardware: Included

COMPATIBLE ALTERNATOR SYSTEMS:
• Delco CS Series alternators (most 1985+ GM vehicles)
• External excitation alternator applications
• External sensing alternator applications
• 120 amp maximum alternator output systems

FITS APPLICATIONS:
• EMS vehicles, fire trucks, ambulances
• Marine, RV, motorhome, camper
• Farm equipment, off-road vehicles
• High-amp stereo / audio systems
• Any dual battery system with 120A max charging
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
VEHICLE / EQUIPMENT APPLICATIONS:

EMS / EMERGENCY VEHICLES:
• Ambulances with dual battery systems
• Fire trucks with auxiliary power systems
• EMS vehicles requiring isolated starter battery protection
• Emergency response vehicles with high electrical demand

MARINE / RV:
• Marine vessels with dual battery banks
• Recreational vehicles (RV) and motorhomes
• Campers and travel trailers with auxiliary batteries
• Houseboats and cabin cruisers

FARM / OFF-ROAD:
• Farm equipment with dual battery configurations
• Off-road vehicles with winch and accessory batteries
• Construction equipment with auxiliary power
• Commercial trucks and fleet vehicles

AUDIO / STEREO:
• High-amp car audio and stereo systems
• Competition audio vehicles with dedicated amplifier batteries
• Custom vehicle builds with multiple battery banks

ALTERNATOR COMPATIBILITY:

DELCO CS SERIES:
• Delco CS-Series alternators (most 1985+ GM vehicles)
• Applications with external excitation
• Applications with external sensing
• 120 amp maximum alternator output

GENERAL MOTORS:
• GM vehicles with Delcotron/Delphi alternators (except CS-Series without adapter)

FORD VEHICLES:
• Ford vehicles up to 1998 model year

CHRYSLER VEHICLES:
• All Chrysler models and years including Nippondenso external alternators

JEEP VEHICLES:
• Jeep vehicles equipped with Nippondenso-series regulated alternators

JAPANESE IMPORTS:
• Vehicles with alternators using external voltage regulator / external sensing

MOTOROLA:
• Load-Handler series alternators
• BEM Remote Sense series alternators

SPECIFICATIONS:
• Amperage: 120 Amps Maximum
• Input Voltage Range: 6V - 50V DC
• Number of Inputs: 1
• Number of Battery Banks: 2
• Ground Type: Negative
• Ignition Terminal: Yes
• Sense Terminal: No
• Operating Temp: -40°C to +93°C
• Insulation to Ground: 500V 60Hz AC Min
• Finish: Blue Anodized (336 hr salt spray rated per ASTM B117)
• Studs: 4
• Mounting Holes: 6 at 0.21"
• Length: 7.48" / 190mm
• Width: 4.528" / 115mm
• Height: 3.307" / 84mm
• Technology: Solid-State Electronics
• Mounting Hardware: Included
