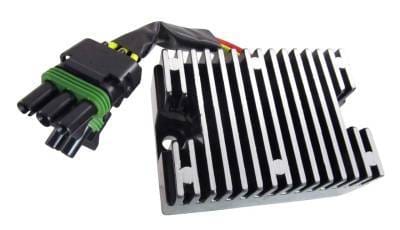

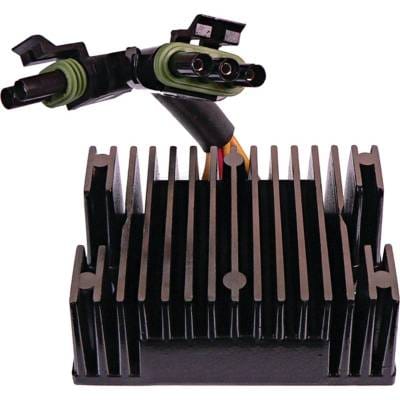

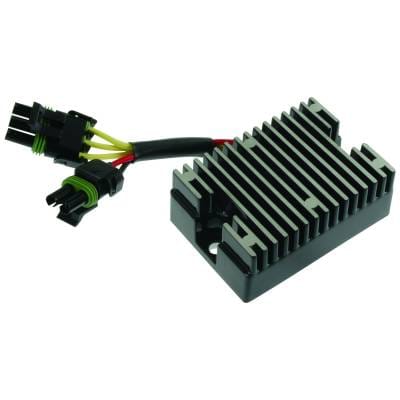

12 Volt Voltage Regulator Compatible With Sea-Doo Gti Le 720Cc Gti Rfi 800Cc 2003-2004 278-001-241

OEM PART NUMBERS:
• 278001241
• 278-001-241
• 278001554
• 278-001-554
• 278001073
• 278-001-073
• 278001240
• 278-001-240
• 495862

SPECIFICATIONS:
• Voltage: 12V
• Type: Shunt-Type Regulator/Rectifier
• Set Voltage: 14.5V +/- 0.5V
• Polarity: Negative Ground
• Stator Type: 3-Phase
• Includes Rectifier: Yes
• Adjustable: No
• Housing Material: Aluminum Heat Sink
• Dimensions: 96mm Length x 70mm Width x 37mm Height
• Mounting Holes: 80mm Center-to-Center
• Hole Diameter: 7mm
• Wire Length: 110mm

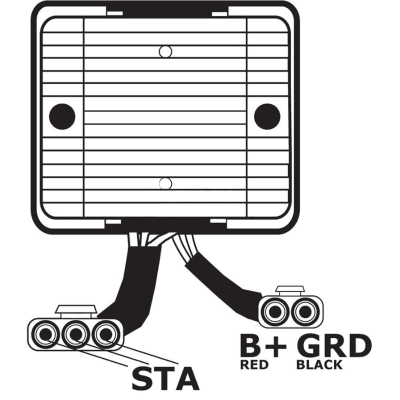

• Connectors: 2 Plugs with 5 Pins Total
• Maximum Charging Current: 25A-35A / 300W-500W
• Open Circuit Voltage: Less than 15V
• Operating Temperature Range: -20 to 85 Celsius
• Weight: 1.23 lbs / 0.56 kgPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SEA-DOO PERSONAL WATERCRAFT (PWC) - 800cc RFI MODELS:
• GSX RFI 800cc (1999)
• GSX RFI 800cc (2000)
• GSX RFI 800cc (2001)
• GTI RFI 800cc (2003)
• GTI RFI 800cc (2004)
• GTI LE RFI 800cc (2003)
• GTI LE RFI 800cc (2004)
• GTX RFI 782cc (1998)
• GTX RFI 782cc (1999)
• GTX RFI 782cc (2000)
• GTX RFI 782cc (2001)
• GTX RFI 782cc (2002)

SEA-DOO PERSONAL WATERCRAFT (PWC) - 720cc MODELS:
• GTI LE 720cc (2003)
• GTI LE 720cc (2004)

SEA-DOO PERSONAL WATERCRAFT (PWC) - 951cc DI MODELS:
• GTX DI 951cc (2000)
• GTX DI 951cc (2001)
• GTX DI 951cc (2002)
• GTX DI 951cc (2003)
• RX DI 951cc (2000)
• RX DI 951cc (2001)
• RX DI 951cc (2002)
• RX DI 951cc (2003)
• RX DI LE 951cc (2002)
• LRV DI 951cc (2002)
• LRV DI 951cc (2003)
• XP DI 951cc (2003)
• XP DI 951cc (2004)

SEA-DOO PERSONAL WATERCRAFT (PWC) - 3D MODELS:
• 3D DI 782cc (2004)
• 3D DI 800cc (2004)

SEA-DOO JET BOATS:
• Sportster LE DI 951cc 130HP (2004)
• Sportster LE DI 951cc 130HP (2005)
• Sportster LE DI 951cc 130HP (2006)
• Sportster 4-TEC 1494cc (2004)
• Sportster 4-TEC 1494cc (2005)
• Sportster 4-TEC 1494cc (2006)

CAN-AM / BOMBARDIER ATV:
• DS 650 653cc (2000)
• DS 650 653cc (2001)
• DS 650 653cc (2002)
• DS 650 Baja 653cc (2000)
• DS 650 Baja 653cc (2001)
• DS 650 Baja 653cc (2002)
• DS 650 X 653cc (2000)
• DS 650 X 653cc (2001)
• DS 650 X 653cc (2002)
