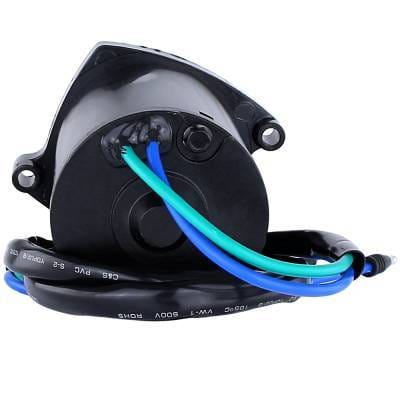

12 Volt Tilt Trim Motor Compatible With 1994-2004 Mercury Mariner Xr6 Magnum Iii 175-250 Hp Outboard

OEM PART NUMBERS:
• Mercury Marine: 828708 (original)
• Mercury Marine: 828708T
• Mercury Marine: 878265A1
• Mercury Marine: 878265A4
• Mercury Marine: 8M0031551 (current supersession)
• Sierra Marine: 18-6773
• ARCO Marine: 6250

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible (CW/CCW)
• Housing OD: 75mm (2.953 in)
• Overall Length: 124.7mm (4.909 in)
• Shaft OD: 8mm (0.315 in)
• Shaft Type: Tanged Shaft
• Connection: 2-Wire with Bullet Connectors
• Wire Harness Length: 3-1/2 Feet (42 inches)
• Mounting: 2-Bolt, 6.5mm ID Mounting Holes
• Mounting Hole Size: 1/4 inch
• Weight: 3.46 lbs (1.57 kg)
• Includes: O-Ring Seal
• Certification: SAE J1171 Marine Ignition Protection
• Condition: New

FITS MERCURY OUTBOARD MODELS:
• Mercury/Mariner 135 HP V6 Outboard (1992-2006)
• Mercury/Mariner 150 HP V6 Outboard (1992-2006)
• Mercury/Mariner 175 HP V6 Outboard (1992-2006)
• Mercury/Mariner 200 HP V6 Outboard (1992-2006)
• Mercury/Mariner 225 HP V6 Outboard (1994-2006)
• Mercury/Mariner 250 HP V6 Outboard (1996-2006)
• Mercury XR6 (2001-2004)
• Mercury/Mariner Magnum III (1994-2000)
• Mercury 150 XRG Magnum III
• Mercury Optimax 200 HP (2003)
• Mercury Optimax 225 HP (2000-2006)
• Mercury/Mariner Jet 105-140 HPPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
MERCURY OUTBOARD MOTORS:

135 HP:
• Mercury 135 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• All Models, V6, 2-Wire Bullet Connector

150 HP:
• Mercury 150 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• All Models, V6, 2-Wire Bullet Connector

175 HP:
• Mercury 175 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• All Models, V6, 2-Wire Bullet Connector

200 HP:
• Mercury 200 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Mercury Optimax 200 HP - 2003
• All Models, V6, 2-Wire Bullet Connector

225 HP:
• Mercury 225 HP Outboard - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Mercury Optimax 225 HP - 2000, 2001, 2002, 2003, 2004, 2005, 2006
• Mercury Sport XS 225 HP 3.0L
• All Models, V6, 2-Wire Bullet Connector

250 HP:
• Mercury 250 HP Outboard - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• All Models, V6, 2-Wire Bullet Connector

XR6 / MAGNUM III / XRG:
• Mercury XR6 - 2001, 2002, 2003, 2004
• Mercury Magnum III - 1994, 1995, 1996, 1997, 1998, 1999, 2000
• Mercury 150 XRG Magnum III
• 175-250 HP Magnum III Models

JET DRIVE:
• Mercury/Mariner Jet 105 HP
• Mercury/Mariner Jet 115 HP
• Mercury/Mariner Jet 140 HP

MARINER OUTBOARD MOTORS:

135 HP:
• Mariner 135 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

150 HP:
• Mariner 150 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

175 HP:
• Mariner 175 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

200 HP:
• Mariner 200 HP Outboard - 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

225 HP:
• Mariner 225 HP Outboard - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

MARINER XR6 / MAGNUM III:
• Mariner XR6 - 2001, 2002, 2003, 2004
• Mariner Magnum III - 1994, 1995, 1996, 1997, 1998, 1999, 2000

NOTE:
• 2-Wire connection with male bullet connector ends
• Verify OEM part number from your original unit before ordering
