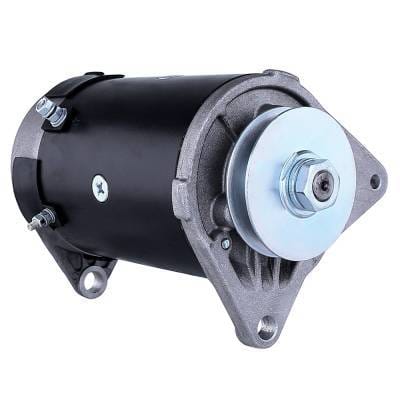

12 Volt Starter Generator Compatible With 1994-2008 Ez-Go Workhorse 800 1200 Lx St350 Turf Cart

EZ-GO OEM PART NUMBERS:
• 25533-G01
• 26993-G01
• 27065-G01
• 625715
• 612028
• 649711
• 75-2007
• 114014010

HITACHI OEM PART NUMBERS:
• GSB107-10
• GSB107-10A
• GSB107-10B
• GSB107-10C

CLARK EQUIPMENT OEM PART NUMBERS:
• 067005319

SPECIFICATIONS:
• Type: Motor Generator (Starter-Generator)
• Unit Type: Hitachi
• Voltage: 12V
• Amperage: 20 Amps
• Rotation: Reversible (Bi-Directional)
• Terminals: 5 Terminal Configuration
• Shaft OD: 16mm / 0.630in
• Shaft Notes: Threaded
• Terminal 1 Size: M6-1.0
• Terminal 2 Size: M5-0.8
• Terminal 3 Size: M6-1.0
• Terminal 4 Size: M6-1.0
• Field Housing OD: 113.6mm / 4.472in
• Overall Length: 221.7mm / 8.728in
• Weight: 20 LBS

FITS EZ-GO GOLF CARTS:
• Medalist (1993-2008)
• TXT 4 Caddy, TXT Fleet, TXT Freedom, TXT Freedom HP (1998-2008)
• MG2 4 Caddy, MG2 Fleet, MG2 Freedom, MG2 Freedom HP (1998-2008)
• RXV Standard (2008-2015)

FITS EZ-GO UTILITY VEHICLES:
• BC-960GX (1994-2008)
• Cargo Shuttle (1994-2008)
• Grand Oasis (1994-2008)
• Oasis (1996-2008)
• GXI-875, GXI-875P (1994-2008)
• GXT-875, GXT-875P (1994-2008)
• PC-952GX, PC-954GX, PC-956GX (1994-2008)
• Shuttle 2, Shuttle 4, Shuttle 6, Shuttle 950 (1994-2008)

FITS EZ-GO INDUSTRIAL / TURF CARTS:
• Industrial 800 (1999-2008)
• Workhorse 800, 800 LX (1994-2008)
• Workhorse 1200, 1200 LX (1994-2008)
• Workhorse ST350 (1994-2008)
• MPT 800, MPT 1200 (2003-2008)
• ST 350 (1998-2008)
• ST 480 (2000-2008)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EZ-GO GOLF CARTS:

MEDALIST:
• EZ-GO Medalist - 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

TXT SERIES:
• EZ-GO TXT 4 Caddy - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO TXT Fleet - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO TXT Freedom - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO TXT Freedom HP - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

MG2 SERIES:
• EZ-GO MG2 4 Caddy - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO MG2 Fleet - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO MG2 Freedom - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO MG2 Freedom HP - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

EZ-GO UTILITY VEHICLES:

SHUTTLE / OASIS SERIES:
• EZ-GO BC-960GX - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Cargo Shuttle - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Grand Oasis - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Oasis - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Shuttle 6 - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

GXI / GXT SERIES:
• EZ-GO GXI-875 - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO GXI-875P - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO GXT-875 - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO GXT-875P - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

PC SERIES:
• EZ-GO PC-952GX - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO PC-954GX - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO PC-956GX - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

EZ-GO INDUSTRIAL / TURF CARTS:

WORKHORSE SERIES:
• EZ-GO Workhorse 800 - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Workhorse 800 LX - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Workhorse 1200 - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Workhorse 1200 LX - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Workhorse ST350 - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

INDUSTRIAL:
• EZ-GO Industrial 800 - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

MPT / ST SERIES:
• EZ-GO MPT 800 - 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO MPT 1200 - 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO ST 350 - 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO ST 480 - 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

SHUTTLE SERIES:
• EZ-GO Shuttle 2 - 2005, 2006, 2007, 2008
• EZ-GO Shuttle 4 - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Shuttle 6 - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008
• EZ-GO Shuttle 950 Series - 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004

RXV SERIES:
• EZ-GO RXV Standard - 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
