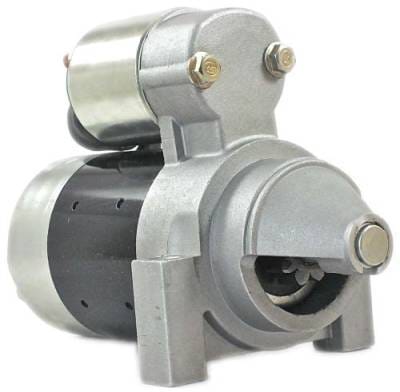

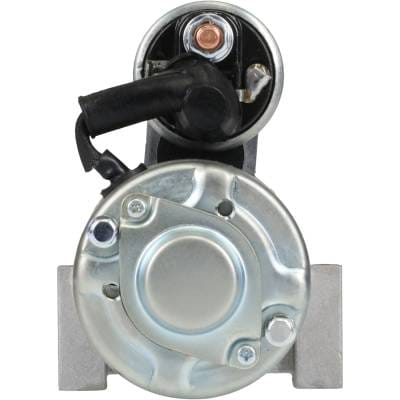

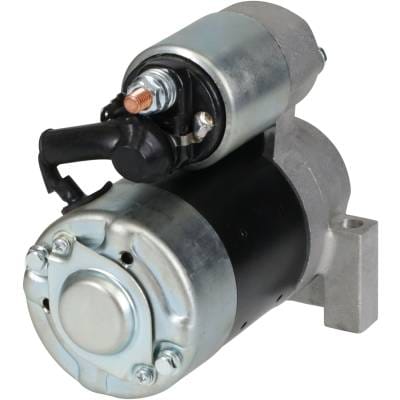

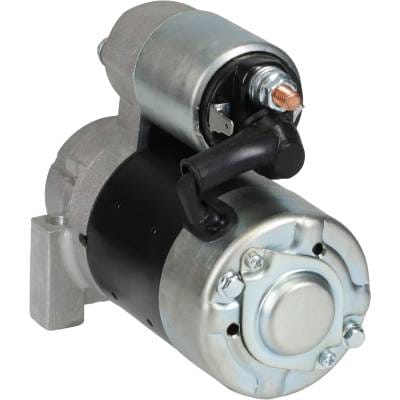

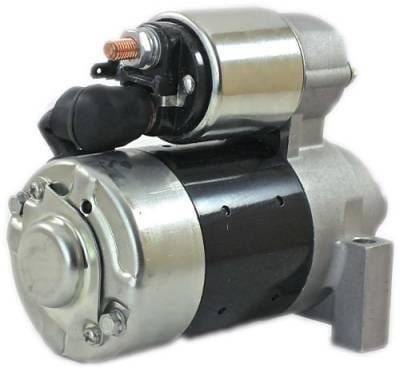

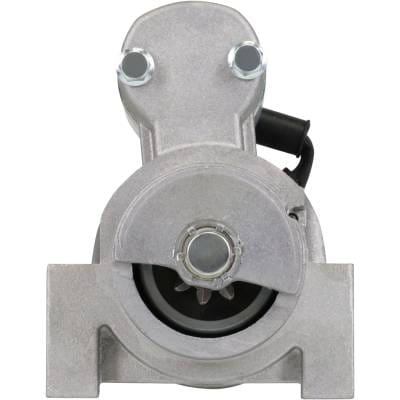

12 Volt Starter Compatible With Wisconsin Robin 2-Cylinder V-Twin Engine 2004-2006 Ranger Tm 653Cc

HITACHI OEM PART NUMBERS:
• S114-680
• S114680

POLARIS OEM PART NUMBERS:
• 3088464

SUBARU ROBIN POWER PRODUCTS:
• 263-7033020-A0
• 2637033020A0
• 263-70502-A0
• 26370502A0
• 263-70503-00
• 2637050300

WISCONSIN MOTORS:
• 263-7033020-A0
• 2637033020A0
• 263-70502-A0
• 26370502A0

ISUZU:
• 26370502A0

TUCKER ROCKY:
• 495807
• 49-5807

SPECIFICATIONS:
• Voltage: 12V
• Power: 0.8 kW / 1.07 HP
• Rotation: CCW (Counterclockwise)
• Starter Type: DD (Direct Drive)
• Unit Type: Hitachi
• Teeth: 9
• Pinion/Splines OD: 28.7mm / 1.130 in
• Mounting Hole 1: 9.1mm ID Unthreaded
• Mounting Hole 2: 9.1mm ID Unthreaded
• Weight: 8.5 lbs / 3.86 kg

FITS POLARIS:
• Ranger TM 653cc UTV 2004-2006

FITS MILLER ELECTRIC WELDER:
• Bobcat 225 22HP Onan/Robin
• Bobcat 250 22HP Onan/Robin

FITS SUBARU ROBIN ENGINES:
• EH63 V-Twin
• EH64 V-Twin
• EH65 V-Twin
• EH65V V-Twin

FITS WISCONSIN MOTORS:
• 2-Cylinder V-Twin Engine
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
POLARIS:

RANGER TM:
• Polaris Ranger TM 653cc UTV - 2004, 2005, 2006
• Robin EH63 V-Twin Engine, OHV 4-Stroke
• Engine Model: EH63PFE010
• Displacement: 653cc
• Bore x Stroke: 80 x 65mm
• Compression Ratio: 8.3:1
• Hitachi Starter System

MILLER ELECTRIC WELDER:

BOBCAT 225:
• Miller Electric Welder Bobcat 225 - 22HP Onan/Robin Engine
• Side Mount Starter Option

BOBCAT 250:
• Miller Electric Welder Bobcat 250 - 22HP Onan/Robin Engine

SUBARU ROBIN ENGINES:

V-TWIN ENGINE MODELS:
• Subaru Robin EH63 V-Twin Engine
• Subaru Robin EH64 V-Twin Engine
• Subaru Robin EH65 V-Twin Engine
• Subaru Robin EH65V V-Twin Engine

WISCONSIN MOTORS:

2-CYLINDER ENGINES:
• Wisconsin Robin 2-Cylinder V-Twin Engine
• Industrial and Commercial Applications

NOTES:
• Voltage: 12V
• Power: 0.8 kW / 1.07 HP
• Rotation: CCW (Counterclockwise)
• Type: DD (Direct Drive)
• Teeth: 9
• Pinion OD: 28.7mm / 1.130 in
• Mounting: Dual 9.1mm ID Unthreaded Holes
• Verify OEM part number from your original unit before ordering
