12 Volt Starter Compatible With Toro Lawn Tractor Lx460 Lx465 Lx420 Lx425 Kohler 18Hp 20Hp 2006-2007

KOHLER OEM PART NUMBERS:
• 20-098-01 / 2009801
• 20-098-01S / 2009801S
• 20-098-01-A / 2009801-A
• 20-098-05 / 2009805
• 20-098-05S / 2009805S
• 20-098-05-A / 2009805-A
• 20-098-06 / 2009806
• 20-098-06S / 2009806S
• 20-098-08 / 2009808
• 20-098-08S / 2009808S
• 20-098-10 / 2009810
• 20-098-10S / 2009810S
• 20-098-11 / 2009811
• 20-098-11S / 2009811S

MTD:
• KH2009805S

NEW HOLLAND / CASE:
• K0H2009805S

CUB CADET:
• KH-20-098-01-S
• KH-20-098-05-S
• KH-20-098-06-S
• KH-20-098-08-S
• KH-20-098-11-S

ROTARY:
• 12709

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Unit Type: Johnson Electric / Kohler
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)

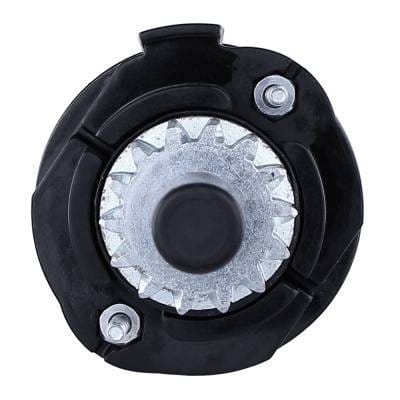

• Teeth: 14
• Gear OD: 1.717 in / 43.6mm
• Battery Stud: 1/4-20
• Mounting: (2) 10-24 External Studs in DE Housing
• Weight: 4.95 lbs / 2.25 kg

ENGINE FITMENT:
• Kohler Courage Single: SV530, SV540, SV541
• Kohler Courage Single: SV590, SV600, SV610, SV620
• 18, 19, 20, 21 HP Engines

⚠️ Verify OEM part number from original unit before ordering.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
KOHLER STARTER MOTOR APPLICATIONS:

KOHLER ENGINE FITMENT:
• Courage Single SV530
• Courage Single SV540
• Courage Single SV541
• Courage Single SV590
• Courage Single SV600
• Courage Single SV610
• Courage Single SV620
• 18 HP, 19 HP, 20 HP, 21 HP Engines

TORO ZERO TURN MOWERS:
• G4010 Kohler 19HP 2007-2008
• G4020 Kohler 21HP 2007-2008
• TimeCutter Z4200 Riding Mower Kohler 19HP 2007-2009
• TimeCutter Z4220 Riding Mower Kohler 21HP 2008-2009
• TimeCutter Z5000 Riding Mower Kohler 21HP 2007-2009

TORO LAWN TRACTORS:
• LX420 Kohler 18HP 2006
• LX425 Kohler 20HP SV540 2007
• LX460 Kohler 20HP 2006
• LX465 Kohler 20HP 2007

NEW HOLLAND ZERO TURN MOWERS:
• G4010 Kohler 19HP Gas 2007-2009
• G4020 Kohler 21HP Gas 2007-2009

CUB CADET (with Kohler engines):
• i1042, i1046
• LT1042 2005-2008, LT1045 2005-2008
• LTX1040, LTX1042, LTX1045
• RZT 42, ZTT 42, ZTT 46
• XT1 LT42 Endure

FITMENT NOTES:
• 12 Volt PMDD Starter
• 14 Tooth CCW Rotation
• Direct OEM Replacement
