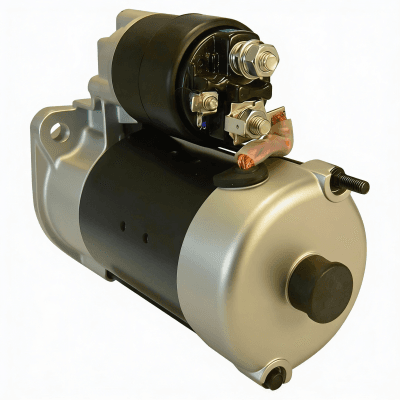

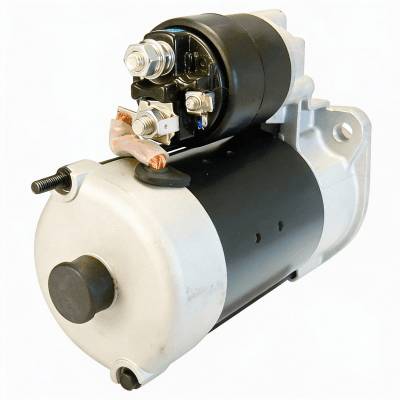

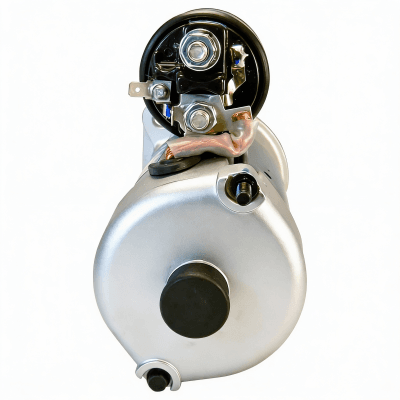

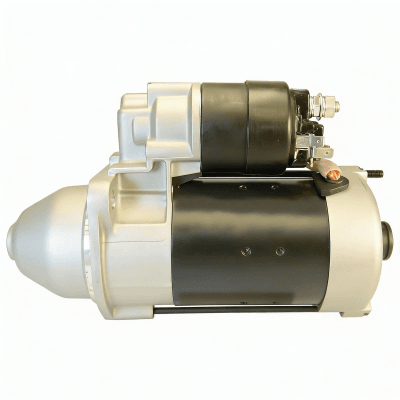

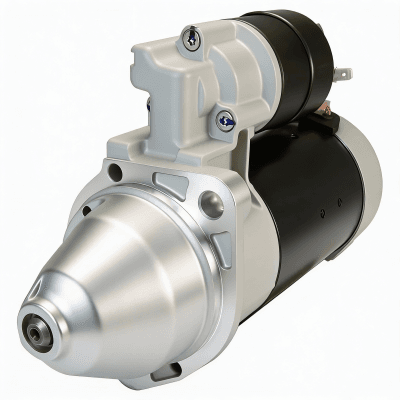

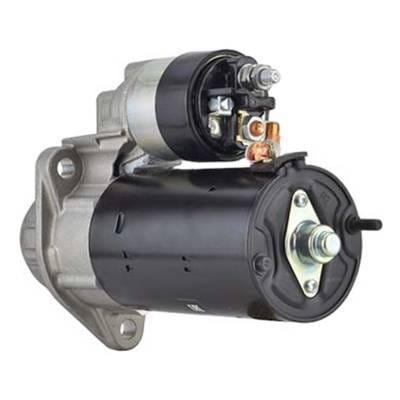

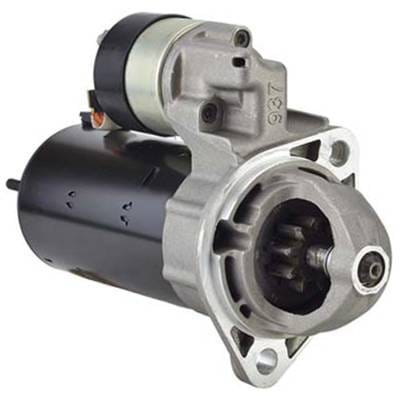

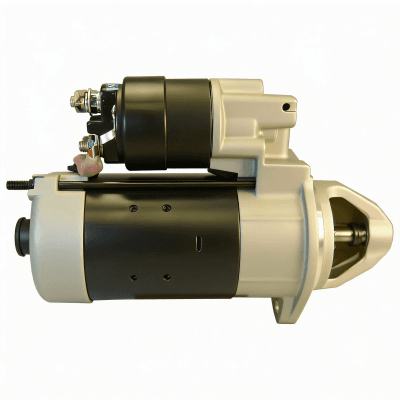

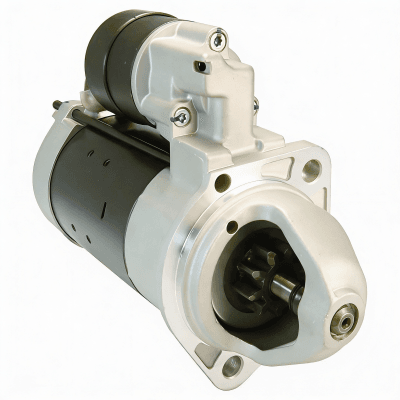

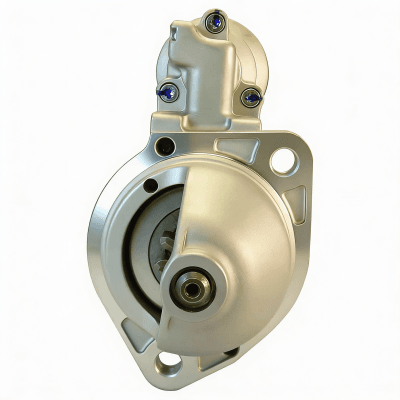

12 Volt Starter Compatible With 2001-2006 3307 3307P Single Drum Roller Bf4m1011f Diesel 1997-2006

OEM PART NUMBERS:
• 0001223021 (Bosch)
• 0986019820 (Bosch)
• 01182384 / 1182384 / 118-2382 (Deutz/KHD)
• 01183404 / 1183404 (Deutz/KHD)
• 01183599 / 1183599 (Deutz/KHD)
• 04300006 / 4300006 (Deutz/KHD)

SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Voltage: 12V
• Power: 2.3 KW (3.08 HP)
• Rotation: Clockwise (CW)
• Teeth: 9 Spline
• Gear OD: 1.327 in / 33.7mm
• Mounting: 2x 11mm Unthreaded Ears
• Ear Spacing: 4.094 in / 104mm Center to Center
• Unit Series: 223
• Clutch Type: Dry
• Weight: 9.88 lbs / 4.49 kg

FITS ENGINES:
• F3L1011 - 3-Cylinder Air/Oil Cooled Deutz Diesel (47 HP)
• BF4M1011F - 4-Cylinder Turbocharged Deutz Diesel (75 HP)
• F2L1011 - 2-Cylinder Air Cooled Deutz Diesel

FITS COMPACTORS:
• BW124DH-3 - F3L1011 Diesel - 1997-2006
• BW124PDH-3 - F3L1011 Diesel - 1997-2006

FITS ROLLERS:
• 3307 - BF4M1011F Diesel - 2001-2006
• 3307P - BF4M1011F Diesel - 2001-2006
• WP6400 - F2L1011 Diesel - 1999-2006
• WP6400B - F2L1011 Diesel - 1999-2006
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
COMPACTORS:

BW124DH-3:
• BW124DH-3 Single Drum Vibratory Compactor - F3L1011 Deutz Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• 3-Cylinder Air/Oil Cooled Deutz Diesel, 47 HP, 51.6 in Smooth Drum, Operating Weight: 7,386 lbs

BW124PDH-3:
• BW124PDH-3 Single Drum Vibratory Padfoot Compactor - F3L1011 Deutz Diesel - 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• 3-Cylinder Air/Oil Cooled Deutz Diesel, 47 HP, 47.3 in Padfoot Drum, Operating Weight: 7,386 lbs

ROLLERS:

3307:
• 3307 Single Drum Vibratory Roller - BF4M1011F Deutz Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• 4-Cylinder Turbocharged Deutz Diesel, 75 HP (55.4 KW), 66 in Smooth Drum, Operating Weight: 6,620 lbs (ROPS)

3307P:
• 3307P Single Drum Vibratory Padfoot Roller - BF4M1011F Deutz Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• 4-Cylinder Turbocharged Deutz Diesel, 75 HP (55.4 KW), 66 in Padfoot Drum, Operating Weight: 6,840 lbs (ROPS)

WP6400:
• WP6400 Wolfpac Vibratory Asphalt Roller - F2L1011 Deutz Diesel - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• 2-Cylinder Air Cooled Deutz Diesel, 47 in Drum Width

WP6400B:
• WP6400B Wolfpac Vibratory Asphalt Roller - F2L1011 Deutz Diesel - 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006
• 2-Cylinder Air Cooled Deutz Diesel, 30 HP, 47 in Drum Width, Operating Weight: 6,502 lbs

NOTE:
• All models equipped with Deutz diesel engines
• Verify OEM part number from your original unit before ordering
