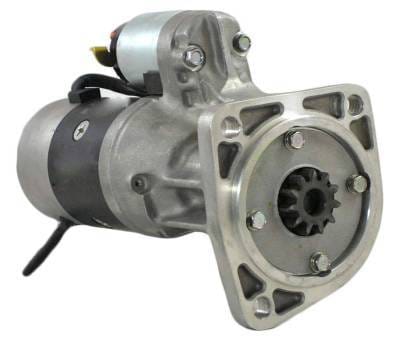

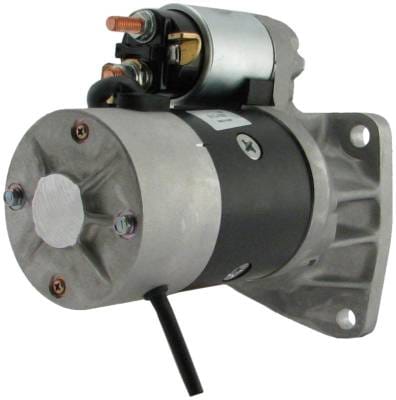

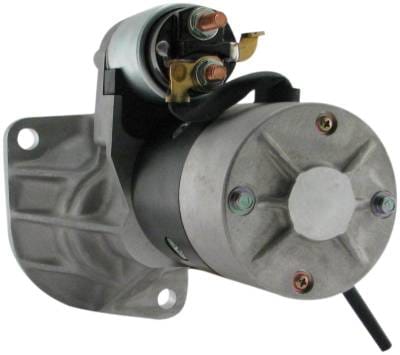

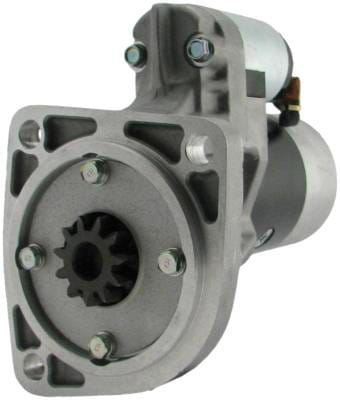

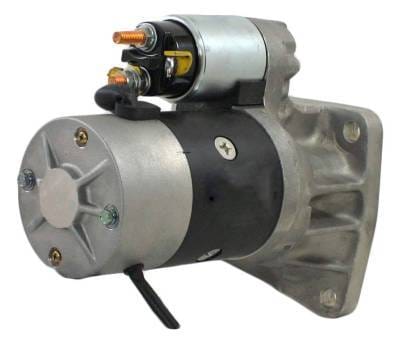

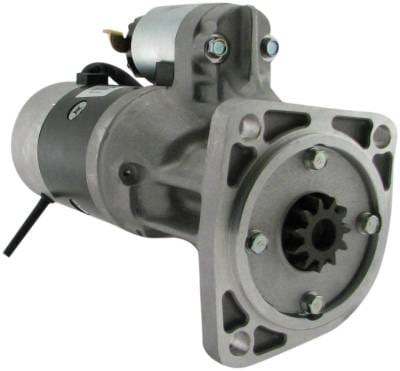

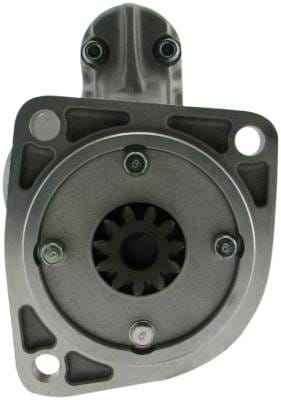

12 Volt Starter Compatible With 1999 2000 2001 2002 2003 2004 Ud 1200 1400 1800Cs 4.6L Diesel

HITACHI OEM PART NUMBERS:
• S15-05 - Original Hitachi starter
• S15-05A - Revised Hitachi starter
• S15-05B - Updated Hitachi starter
• S15-05BN - Current Hitachi production number

NISSAN OEM PART NUMBERS:
• 23300-29D00 - Original Nissan UD part number
• 23300-29D01 - Revised Nissan UD part number
• 23300-29D01X - Current Nissan UD part number

SPECIFICATIONS:
• Type: OSGR (Offset Gear Reduction) Starter
• Unit Manufacturer: Hitachi
• Voltage: 12V
• Rotation: CW (Clockwise)
• Teeth: 11
• Pinion OD: 40.3mm / 1.587in
• Mounting Hole 1: 13.2mm ID Unthreaded
• Mounting Hole 2: 13.2mm ID Unthreaded
• Mounting Hole 3: 13.2mm ID Unthreaded
• Approximate Weight: 16.735 lbs / 7.61 kg

FITS UD MEDIUM/HEAVY DUTY TRUCKS:
• UD 1200 - 4.6L FD46TA Diesel (1999-2004)
• UD 1400 - 4.6L FD46TA Diesel (1999-2004)
• UD 1800CS - 4.6L FD46TA Turbo Diesel (1999-2004)

ENGINE:
• Nissan FD46TA - 4.6L (4,617cc / 282 CID) Inline 4-Cylinder Turbocharged Intercooled Diesel
• Bore x Stroke: 108.0mm x 126.0mm
• OHV, 2 Valves Per CylinderPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
NISSAN UD MEDIUM/HEAVY DUTY TRUCKS (1999-2004):

UD 1200:
• UD 1200 4.6L (282 CID) FD46TA Turbo Diesel - 1999, 2000, 2001, 2002, 2003, 2004
• Class 3 Cabover - 12,000 lb GVWR
• Inline 4-Cylinder Diesel, 145 HP @ 2800 RPM

UD 1400:
• UD 1400 4.6L (282 CID) FD46TA Turbo Diesel - 1999, 2000, 2001, 2002, 2003, 2004
• Class 4/5 Cabover - 14,050 lb GVWR
• Inline 4-Cylinder Diesel, 175 HP @ 2800 RPM

UD 1800CS:
• UD 1800CS 4.6L (282 CID) FD46TA Turbo Intercooled Diesel - 1999, 2000, 2001, 2002, 2003, 2004
• Class 5 Cabover - 17,995 lb GVWR
• Inline 4-Cylinder Turbocharged Intercooled Diesel
• Standard: Nissan MHS61A 6-Speed Manual Transmission
• Optional: Aisin A450-43LE Electronic Automatic Transmission

ENGINE DETAILS - NISSAN FD46TA:
• Displacement: 4.6L (4,617cc / 282 CID)
• Configuration: Inline 4-Cylinder
• Aspiration: Turbocharged and Intercooled
• Bore x Stroke: 108.0mm x 126.0mm
• Fuel System: Direct Injection Diesel
• Cylinder Block: Cast Iron
• Valve Train: OHV, 2 Valves Per Cylinder (8 Total)

STARTER SYSTEM:
• Manufacturer: Hitachi
• Type: OSGR (Offset Gear Reduction)
• Engages with engine flywheel via 11-tooth pinion gear
• Clockwise rotation when viewed from pinion end
• 3-bolt mounting pattern with 13.2mm unthreaded holes
