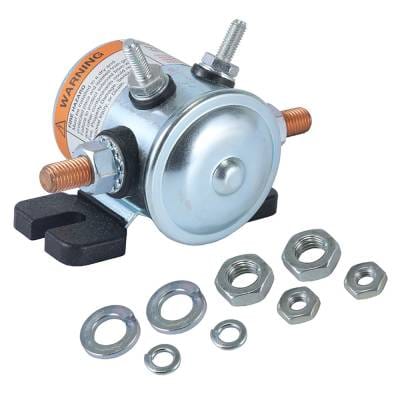

12 Volt Solenoid Compatible With Prestolite 15-311 15-315 White Rodgers 70-902S1 Goodall 77-181S1

OEM PART NUMBERS:
• 70-902 / 70902 (White Rodgers)
• 70-902S1 / 70902S1 (White Rodgers)
• 70-111224 / 70111224 (White Rodgers)
• 70-111224-5 / 701112245 (White Rodgers)
• 70-111224-5A / 701112245A (White Rodgers)
• 24059BX (Cole Hersee)
• 24059 (Cole Hersee)
• 77-181S1 / 77181S1 (Goodall)
• 15-132 / 15132 (Prestolite)
• 15-236 / 15236 (Prestolite)
• 15-311 / 15311 (Prestolite)
• 15-315 / 15315 (Prestolite)
• 5117440 (Johnson Electric)
• SO51174 (Johnson Electric)
• 6C028 (General)

ADDITIONAL CROSS-REFERENCES:
• 6600-1017 / 36600-1017
• 240-01000 / 240-01004
• 1114214 / 1114217 / 1114218
• 1114223 / 1114227 / 1114534 / 1118820
• 10-CD104 / 10-CH71017 / 7-1017
• SPL6008 / 546-028 / 11885
• 3635820 / 70-6910 / 66GMM-115
• D2-6090N / 3178M / APL3004
• SAS-4201 / UAC172 / 21-1501
• SSMU-1017 / 67-702 / 67-702-1-C / 67-702-1-S / 67-702-S / 7-1013

SPECIFICATIONS:
• Type: Solenoid / DC Power Contactor
• Contact Configuration: SPST - Normally Open (SPST-NO)
• Voltage: 12V DC
• Continuous Amperage: 80A
• Surge Amperage: 150A
• Duty Cycle: Continuous
• Coil Type: Isolated
• Terminals: 4 Total - (2) 5/16-24 Power, (2) 10-32 Coil
• Contact Material: Copper
• Case Material: Metal (Dust-Resistant)
• Mounting: Flat 180 (F180) Standard Bracket
• Weight: 0.9 lbs / 0.41 kg
• Certification: UL 538
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
UNIVERSAL 12V DC POWER SOLENOID CONTACTOR:

APPLICATION TYPE:
• This solenoid fits various starters and applications by OEM part number
• Universal 12V DC power contactor - SPST normally open configuration
• Used in starter motor circuits, hydraulic power units, winch systems, and general industrial electrical applications

COMPATIBLE EQUIPMENT TYPES:
• Starter Motor Solenoid - Various makes and models
• Hydraulic Power Units - 12V DC systems
• Winch Controls - Electric winch applications
• Industrial Equipment - Mobile and stationary 12V DC systems
• Utility Vehicles - Battery-powered equipment
• Construction Equipment - 12V electrical systems
• Agricultural Equipment - Tractor and implement circuits
• Marine Applications - 12V DC boat electrical systems
• RV and Camper - 12V DC auxiliary circuits
• Emergency Vehicle Equipment - Battery disconnect and power switching

MATCH BY PART NUMBER:
• White Rodgers: 70-902, 70-902S1, 70-111224, 70-111224-5, 70-111224-5A
• Cole Hersee: 24059BX, 24059
• Goodall: 77-181S1
• Prestolite: 15-132, 15-236, 15-311, 15-315
• Johnson Electric: 5117440, SO51174
• General: 6C028
