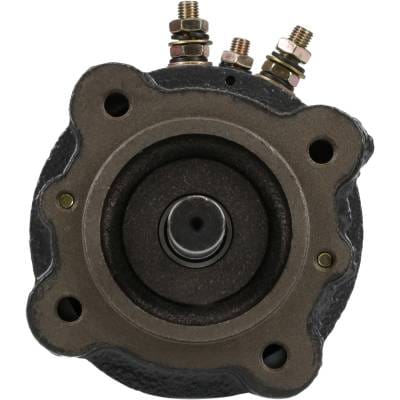

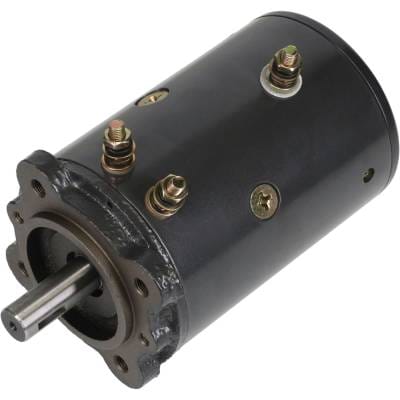

12 Volt Reversible Winch Motor Compatible With Ramsey Tulsa Braden Liftmore Koenig Pierce Desert

OEM PART NUMBERS:
• Prestolite: MBJ4202, MBJ4204, MBJ4207, MBJ4209
• Prestolite: MBJ4402, MBJ4403, MBJ4405, MBJ4407
• Prestolite: MBJ4410, MBJ4411, MBJ4412, MBJ4415, MMD4402
• Prestolite: 46-2283, 46-339, 46-2062, 46-2097, 46-2099
• Prestolite: 46-2282, 46-2285, 46-2287, 46-2636
• Prestolite: 46-2391, 46-2401, 46-2426
• Western Motor: W-8933, W-9144, W-9143, T-8975
• Western Motor: DCM0001, PR2-0056N, M-3300
• Ramsey Winch: 458001, 458094

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• RPM: 2550
• Field Housing OD: 112mm / 4.409"
• Overall Length: 209.5mm / 8.248"
• Shaft OD: 19mm / 0.748"
• Shaft: 4.8mm Woodruff Key Slot
• Terminals: F1 5/16-18, F2 5/16-18, ARM 5/16-18
• Condition: New

APPLICATION:
• Braden / Cam / Hickey / Desert Dynamics / Koenig / Liftmore / Ramsey / Tulsa / Pierce Winch
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
EQUIPMENT APPLICATIONS:
• Braden Industries Winch
• Cam Industries Winch
• Hickey Equipment
• Desert Dynamics Winch
• Koenig Lift Motors
• Liftmore Lift Motors
• Ramsey Winch
• Tulsa Winch
• Pierce Winch

MOTOR SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: Reversible (Bi-Directional)
• RPM: 2550
• Field Housing OD: 112mm / 4.409"
• Overall Length: 209.5mm / 8.248"
• Shaft OD: 19mm / 0.748"
• Shaft: 4.8mm Woodruff Key Slot
• Terminals: 3x 5/16-18 (F1, F2, ARM)

NOTE: Verify OEM part number before ordering.
