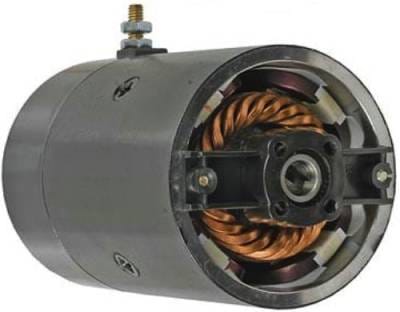

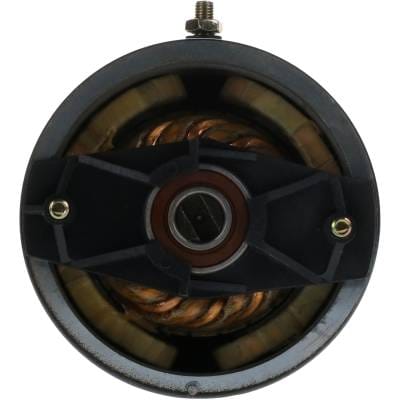

12 Volt Ccw Pump Motor Compatible With Hydraulic Liftgate Power Unit Slotted Shaft Double Ball

OEM PART NUMBERS:
• 70091739 (Waltco)
• 2200072 (Haldex-Barnes)
• 39200398 (Haldex-Barnes / MTE Hydraulics)
• 229272 (Maxon)
• 8100 (Monarch)
• 4422590 (Thieman)
• W-8943 (Western Motor)
• W-8943D (Western Motor)
• W-8943DBB (Western Motor)
• DCM-0007 (Reference Number)
• BMT0127 (National Liftgate Parts)
• PLMMY6302 (OEM)

PRESTOLITE PART NUMBERS:
• 46-2054
• 46-2495
• 46-2516
• 46-2534
• 46-4038
• 46-4154
• MFX4003
• MFX4003S
• MMW4001
• MMW4002
• MMW4002S
• MMY4001
• MMY4001A
• MMY4001S
• MMY4004
• MMY4004S
• MMY6101A
• MMY6101AS
• MMY6302

SPECIFICATIONS:
• Voltage: 12V DC
• Rotation: CCW (Counter Clockwise)
• Shaft Type: Slotted Shaft
• Bearing: Double Ball Bearing
• Field Housing OD: 113.6mm / 4.472 inch
• Overall Length: 178.6mm / 7.031 inch
• Shaft OD: 15.4mm / 0.606 inch
• Terminal Size: 5/16-24
• Weight: 18 lbs / 8.18 kg
• Motor Type: 4.5 inch HD Motor
• Field Case: 6.875 inch
• Thru Bolt Position: 3:00 and 9:00
• Switch Mount: 1/4-20 threaded holes

FITS EQUIPMENT:
• Waltco Liftgates
• Maxon Liftgates
• Thieman Tailgates
• Leyman Liftgates
• MTE Hydraulics Power Units
• JS Barnes / Haldex-Barnes Power Units
• Monarch Hydraulics Power Units
• Fenner Stone Power Units
• Leece Neville Applications
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
LIFTGATE MANUFACTURERS:

WALTCO:
• Waltco Hydraulic Liftgates - All Models with 12V CCW Slotted Shaft Motor
• Waltco Part Number: 70091739

MAXON:
• Maxon Hydraulic Liftgates - All Models with 12V CCW Slotted Shaft Motor
• Maxon Part Number: 229272

THIEMAN:
• Thieman Hydraulic Tailgates - All Models with 12V CCW Slotted Shaft Motor
• Thieman Part Number: 4422590

LEYMAN:
• Leyman Hydraulic Liftgates - All Models with 12V CCW Slotted Shaft Motor

HYDRAULIC POWER UNIT MANUFACTURERS:

MTE HYDRAULICS:
• MTE Hydraulics Power Units - All Models with 12V CCW Slotted Shaft Motor
• MTE Hydraulics Part Number: 39200398

JS BARNES / HALDEX-BARNES:
• JS Barnes Hydraulic Power Units
• Haldex-Barnes Part Numbers: 2200072, 39200398

MONARCH HYDRAULICS:
• Monarch Hydraulics Liftgate Power Units
• Monarch Part Number: 8100

FENNER STONE:
• Fenner Stone Hydraulic Power Units

NOTES:
• Unit Type: Hydraulic Pump Motor
• Application: Liftgate, Tailgate, Hydraulic Power Unit
• Shaft Style: Slotted Shaft
• Bearing Type: Double Ball Bearing
• Thru Bolt Position: 3:00 and 9:00 o'clock
• Switch Mount Holes: 1/4-20 threaded holes in field case
• Verify OEM part number before ordering
