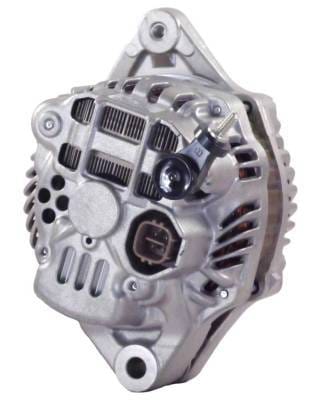

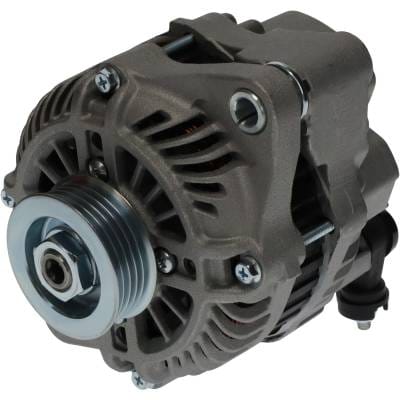

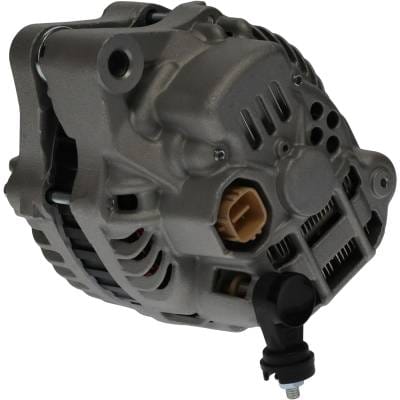

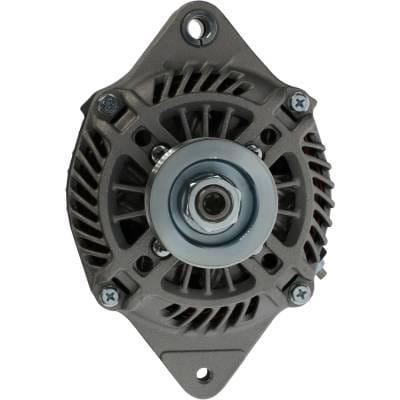

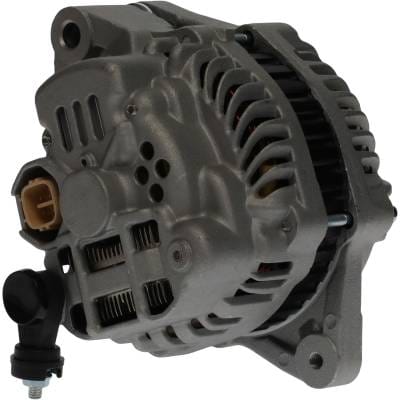

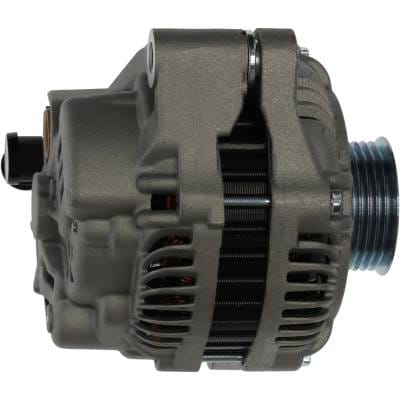

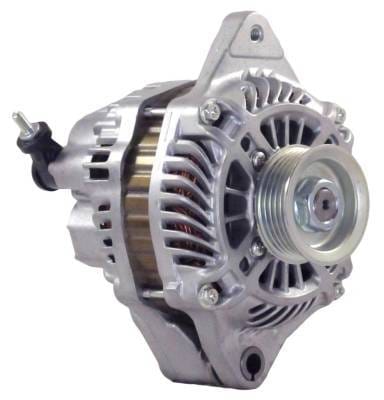

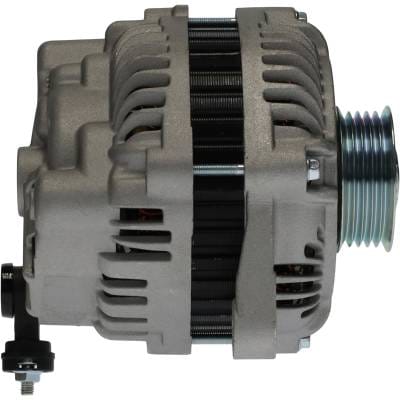

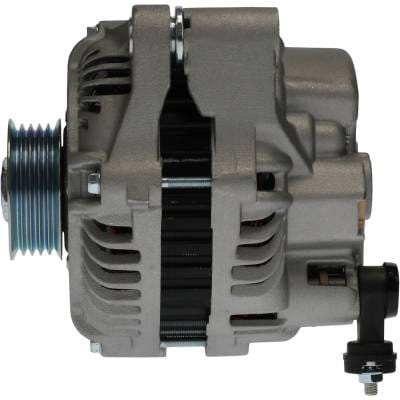

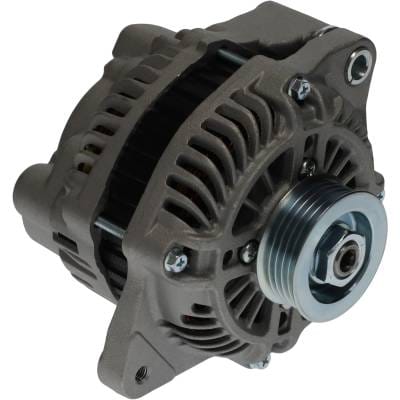

12 Volt Alternator Compatible With 2011-2017 Pixo 1.0L Agila B 1.2L K12b 2005-2010 Grand Vitara 1.6L

MITSUBISHI OEM PART NUMBERS:
• A5TG0291
• A005TG0291

SUZUKI OEM PART NUMBERS:
• 31400-65J10
• 3140065J10
• 31400-65J00
• 3140065J00
• 31400-65J12
• 3140065J12

LUCAS:
• LRA02957

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 80 Amps
• Unit Type: Mitsubishi
• Fan: Internal
• Regulator: Internal
• Pulley Grooves: 5
• Polarity: Negative
• Regulator Clock Position: 4:00
• B+ Terminal: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.5mm Unthreaded
• Connector: 4-Pin Plug
• Weight: 13 lbs (5.89 kg)

FITS SUZUKI:
• Grand Vitara II 1.6L M16A 2005-2010
• Grand Vitara II 2.0L J20A 2005-2008
• Swift III 1.6L M16A 2006-on
• Swift IV 1.2L K12B 2010-2017
• Splash 1.0L K10B 2011-2017
• Splash 1.2L K12B 2011-2017

FITS OPEL / VAUXHALL:
• Agila B 1.0L K10B 2011-2017
• Agila B 1.2L K12B 2011-2017

FITS NISSAN:
• Pixo 1.0L K10B 2011-2017
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
SUZUKI:

GRAND VITARA II:
• Suzuki Grand Vitara II 1.6L 1600cc M16A - 2005, 2006, 2007, 2008, 2009, 2010
• Suzuki Grand Vitara II 2.0L J20A - 2005, 2006, 2007, 2008

SWIFT III:
• Suzuki Swift III 1.6L M16A - 2006, 2007, 2008 and on

SWIFT IV:
• Suzuki Swift IV 1.2L 1242cc K12B - 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

SPLASH:
• Suzuki Splash 1.0L 996cc K10B - 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Suzuki Splash 1.2L 1242cc K12B - 2011, 2012, 2013, 2014, 2015, 2016, 2017

OPEL (EUROPE):

AGILA B:
• Opel Agila B 1.0L 996cc K10B - 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Opel Agila B 1.2L 1242cc K12B - 2011, 2012, 2013, 2014, 2015, 2016, 2017

VAUXHALL (EUROPE):

AGILA B:
• Vauxhall Agila B 1.0L 996cc K10B - 2011, 2012, 2013, 2014, 2015, 2016, 2017
• Vauxhall Agila B 1.2L 1242cc K12B - 2011, 2012, 2013, 2014, 2015, 2016, 2017

NISSAN (EUROPE):

PIXO:
• Nissan Pixo 1.0L 996cc K10B - 2011, 2012, 2013, 2014, 2015, 2016, 2017

NOTES:
• Voltage: 12V
• Amperage: 80 Amps
• Pulley Grooves: 5
• Connector: 4-Pin Plug
• Internal Fan and Internal Regulator
• European market models
• Verify OEM part number from your original unit before ordering
