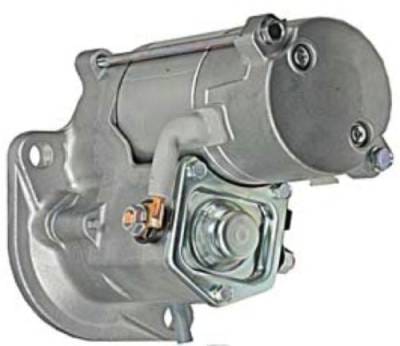

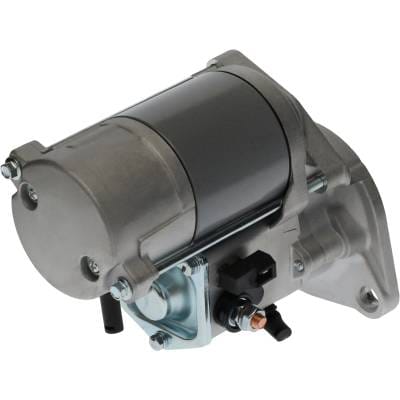

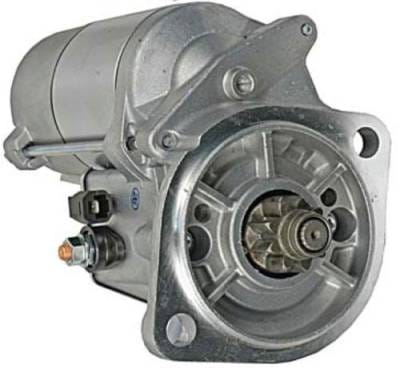

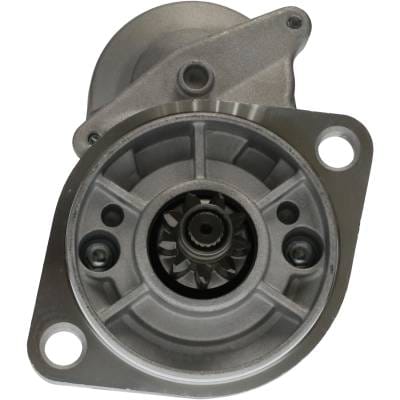

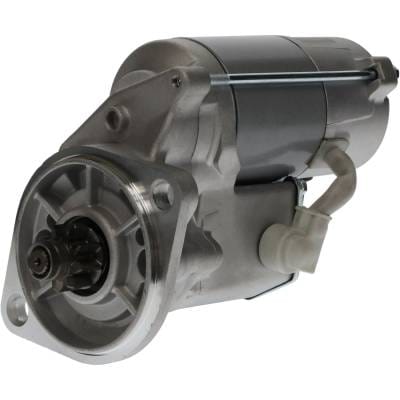

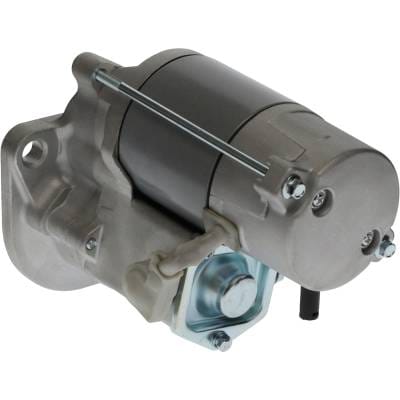

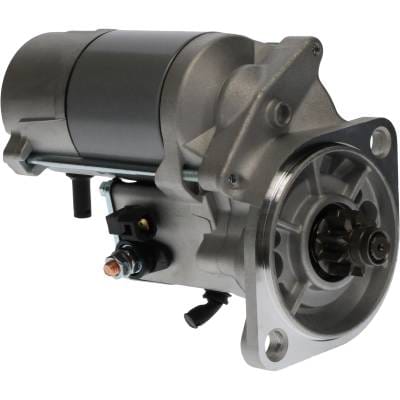

12 Volt 9T Osgr Starter Compatible With Denso 228000-3850 228000-5382 Isuzu 8971128652 4Le1 3Ld2

DENSO OEM PART NUMBERS:
• 228000-3850
• 228000-3851
• 228000-3852
• 228000-5380
• 228000-5381
• 228000-5382
• 228080-3852

ISUZU OEM PART NUMBERS:
• 8-97112-865-0 (8971128650)
• 8-97112-865-1 (8971128651)
• 8-97112-865-2 (8971128652)
• 8-97135-343-0 (8971353430)
• 8-97135-343-1 (8971353431)
• 8-97135-343-2 (8971353432)
• 1876182730 (ISP Preferred Part Number)

SPECIFICATIONS:
• Unit Type: Denso
• Type: OSGR (Offset Gear Reduction)
• Voltage: 12V
• Power: 2KW / 2.68HP
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.8mm / 1.252in
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Stud: M8-1.25 Thread
• Weight: 10.9 lbs / 4.95 kg
• Note: Ignition Terminal Faces Forward

FITS JOHN DEERE EXCAVATORS:
• 27C ZTS - Isuzu 3LD2 Diesel (2003-2006)
• 35C ZTS - Isuzu 3LD1 Diesel (2003-2005)
• 50C ZTS - Isuzu 4LE2 Diesel (2003-2005)
• 50ZTS - Isuzu 4LE1 Diesel (1999-2002)

FITS HITACHI EXCAVATORS:
• EX40U - 4LE1 Diesel (1999-2001)
• EX50U - 4LE1 Diesel (1999-2001)

FITS GENIE EQUIPMENT:
• T15 Generator - 4LE1PV02-502 Engine
• T25 Generator - 4LE1PV02-502 Engine
• T45 Generator - 4JG1TPV Engine
• AL5000 Light Tower - 4LE1PV02-506 / 4LE2-522 Engine
• AL8000HT Light Tower - 4LE1PV02-502 Engine

FITS DENYO EQUIPMENT:
• DCA-25SPI-C Generator - 4LE1 Diesel (2001-2006)
• DCA-25PI-C Generator - 4LE1 Diesel (2001-2006)
• DIS-180SS Compressor - 4LE1 Engine

FITS THOMAS EQUIPMENT:
• T45S Excavator - 4LE1 Diesel (1991-2005)

FITS HYDRA-MAC SKID STEERS:
• 1300 - QD40 Diesel
• 1600 - QD40 Diesel
• 1700 - 3ABA1 Diesel

FITS ALLMAND EQUIPMENT:
• Maxi-Lite ML20EX - 4LE1 Engine

FITS MER EQUIPMENT:
• MG18 Genset - 4LE1 Engine
• MP55 Inboard - 4LE1 Engine

FITS ISUZU ENGINES:
• 3LA1, 3LA2, 3LB1, 3LD1, 3LD2 - Small Diesel
• 4LB1, 4LC1, 4LE1, 4LE2 - Industrial/Marine Diesel
• C240 - Industrial Diesel
• 4LE1 Marine Engine (1996-2006)
• 4LE1PV Industrial Engine (1988-2003)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHN DEERE EXCAVATORS:

27C ZTS COMPACT EXCAVATOR:
• John Deere 27C ZTS - Isuzu 3LD2 Diesel - 2003, 2004, 2005, 2006

35C ZTS COMPACT EXCAVATOR:
• John Deere 35C ZTS - Isuzu 3LD1 Diesel - 2003, 2004, 2005

50C ZTS COMPACT EXCAVATOR:
• John Deere 50C ZTS - Isuzu 4LE2 Diesel - 2003, 2004, 2005

50ZTS COMPACT EXCAVATOR:
• John Deere 50ZTS - Isuzu 4LE1 Diesel - 1999, 2000, 2001, 2002

HITACHI EXCAVATORS:

EX40U COMPACT EXCAVATOR:
• Hitachi EX40U - Isuzu 4LE1 Diesel - 1999, 2000, 2001

EX50U COMPACT EXCAVATOR:
• Hitachi EX50U - Isuzu 4LE1 Diesel - 1999, 2000, 2001

THOMAS EQUIPMENT EXCAVATORS:

T45S COMPACT EXCAVATOR:
• Thomas T45S - Isuzu 4LE1 Diesel - 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

HYDRA-MAC SKID STEERS:

SKID STEER LOADERS:
• Hydra-Mac 1300 Skid Steer - QD40 Diesel
• Hydra-Mac 1600 Skid Steer - QD40 Diesel
• Hydra-Mac 1700 Skid Steer - 3ABA1 Diesel

GENIE INDUSTRIES GENERATORS:

GENERATOR SETS:
• Genie T15 Generator Set - Isuzu 4LE1PV02-502 Engine
• Genie T25 Generator Set - Isuzu 4LE1PV02-502 Engine
• Genie T45 Generator Set - Isuzu 4JG1TPV Engine

LIGHT TOWERS / EQUIPMENT:
• Genie AL5000 Light Tower - Isuzu 4LE1PV02-506 Engine
• Genie AL5000 Light Tower - Isuzu 4LE2-522 Engine
• Genie AL8000HT Light Tower - Isuzu 4LE1PV02-502 Engine

DENYO GENERATORS / COMPRESSORS:

GENERATOR SETS:
• Denyo DCA-25SPI-C Generator Set - Isuzu 4LE1 Diesel - 2001, 2002, 2003, 2004, 2005, 2006
• Denyo DCA-25PI-C Generator Set - Isuzu 4LE1 Diesel - 2001, 2002, 2003, 2004, 2005, 2006

COMPRESSORS:
• Denyo DIS-180SS Compressor - Isuzu 4LE1 Engine

ALLMAND EQUIPMENT:

LIGHT TOWERS:
• Allmand Maxi-Lite ML20EX Light Tower - Isuzu 4LE1 Engine

MER EQUIPMENT:

GENERATORS / INBOARD ENGINES:
• MER Equipment MG18 Genset - Isuzu 4LE1 Engine
• MER Equipment MP55 Inboard - Isuzu 4LE1 Engine

ISUZU ENGINES - MARINE:

MARINE DIESEL ENGINES:
• Isuzu 4LE1 Marine Engine - 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

ISUZU ENGINES - INDUSTRIAL:

INDUSTRIAL DIESEL ENGINES:
• Isuzu 4LE1PV Industrial Engine - 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

COMPATIBLE ISUZU ENGINE MODELS:
• 3LA1
• 3LA2
• 3LB1
• 3LD1
• 3LD2
• 4LB1
• 4LC1
• 4LE1
• 4LE2
• C240
