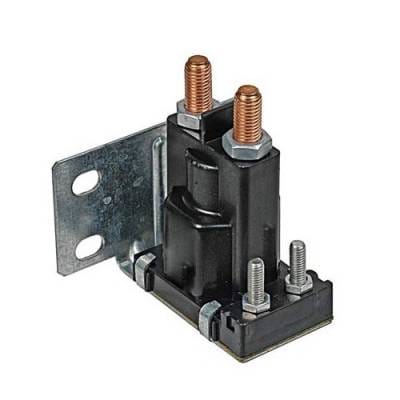

12 Volt 100 Amp 4 Terminal Solenoid Continuous Duty Spst Compatible With White Rodgers 120-105112

OEM PART NUMBERS:
• White Rodgers: 120-907
• White Rodgers: 120-105112
• White Rodgers: 120-105112-1
• White Rodgers: 120-105112-2
• White Rodgers: 120-907S1
• J&N Electrical: 240-01016

SPECIFICATIONS:
• Type: Continuous Duty Solenoid
• Voltage: 12V DC
• Continuous Amps: 100A
• Surge Amps: 400A
• Terminals: 4
• Circuit: SPST (Single Pole Single Throw)
• State: Normally Open
• Coil: Isolated
• Duty Cycle: Continuous
• Mounting: Flat 180 (F180)
• Case Material: Plastic
• Contact Material: Silver Alloy
• Hardware: Included

CAUTION: Always use a back-up wrench to hold the bottom nut when tightening.
NOTE: Use caution in coil selection for 12V systems where battery charging may expose coil to continuous higher than rated voltage.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
UNIVERSAL CONTINUOUS DUTY APPLICATIONS:

HYDRAULIC PUMP SYSTEMS:
• Dump Trailer Hydraulic Pumps
• Dump Truck Hydraulic Systems
• Liftgate Motors
• Hydraulic Power Packs

SNOW EQUIPMENT:
• Snow Plow Motors
• Salt / Sand Spreaders

WINCH / RECOVERY:
• 12V Winch Motors
• Wrecker / Tow Equipment

RV / MARINE / RECREATION:
• RV Battery Isolators
• Leveling Jacks / Slide-Outs
• Boat Lifts and Hoists
• Golf Cart Electrical Systems

GENERAL:
• Auto Lifts / Tire Changers
• Agricultural Equipment
• ATV / UTV Accessories

NOTE: Universal fit. Verify your part number before ordering to ensure fitment.
