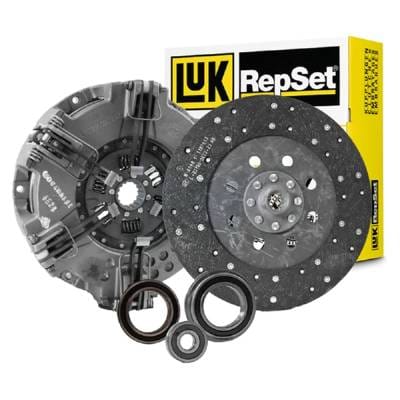

12 Inch Double Clutch Kit Compatible With Farmall 85C 95C 105C Td95d Td5050 Tl80a Tl90a Tl100a

OEM PART NUMBERS:
• CNH/Case IH: 4713560 / 5103175 / 5119164 / 5119165 / 5119875 / 5122028 / 5136682
• CNH/Case IH: 5167933 / 5167937 / 5197980 / 84478095 / K5167937
• CNH/New Holland: 87289219 / 87345759 / 87716690 / 87716719 / 97345759 / 9973689 / B513160
• LuK: 231-0089-10 / 331-0220-10 / 410-0025-40 / 500-0459-00 / 500-1292-40 / 631200110

SPECIFICATIONS:
• Type: Double (Dual Stage) Clutch Kit
• Disc Diameter: 12 Inches (305mm)
• Spline Count: 16 (Transmission Disc) / 10 (PTO Disc)
• Inner Diameter: 40mm
• Bolt Count: 6
• Lever Count: 6
• Material: Cast Iron
• Kit Includes: Pressure Plate Assembly, Transmission Disc, PTO Disc
• Condition: New

APPLICATION:
• JX70U / JX80U / JX90U / JX95 (2002-2007)
• JX1070U / JX1080U / JX1090U (2007-2013)
• Farmall 85U / 85C / 90 / 95 / 95C / 105C / 105U
• TL70 / TL80 / TL80A / TL90 / TL90A / TL100 / TL100A
• T5040 / T5050 / T5060 / TD95D / TD5050
• 4835 / 5635 / 6635 / 7635

12 Inch Dual Stage Clutch Kit - Case IH JX / Farmall / New Holland TL / T5 / 35-Series Tractors
Brand new 12-inch dual stage (double) clutch kit designed for Case IH JX-series utility tractors (JX70U through JX1090U), Farmall compact utility tractors (85U, 85C, 90, 95, 95C, 105C, 105U), and New Holland TL-series (TL70 through TL100A), T5-series (T5040, T5050, T5060), TD-series (TD95D, TD5050), and 35-series (4835, 5635, 6635, 7635) tractors. Features 16-spline transmission disc and 10-spline PTO disc with 6-bolt, 6-lever cast iron pressure plate assembly. Direct OEM replacement for CNH 5167937, 87345759, 84478095, and LuK 631200110, 231-0089-10.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
CASE IH JX-SERIES TRACTORS:
• JX70U (2002-2007)
• JX80U (2002-2007)
• JX90U (2002-2007)
• JX95 (2002-2007)
• JX1070U (2007-2013)
• JX1080U (2007-2013)
• JX1090U (2007-2013)

CASE IH FARMALL TRACTORS:
• Farmall 85U
• Farmall 85C
• Farmall 90
• Farmall 95 / 95C
• Farmall 105C / 105U

NEW HOLLAND TL-SERIES TRACTORS:
• TL70
• TL80 / TL80A
• TL90 / TL90A
• TL100 / TL100A

NEW HOLLAND T5 / TD / 35-SERIES TRACTORS:
• T5040 / T5050 / T5060
• TD95D / TD5050
• 4835 (1995-1998)
• 5635 (1998+)
• 6635 / 7635

NOTE: This is a 12-inch dual stage (double) clutch kit with 16-spline transmission disc and 10-spline PTO disc. Verify OEM part number before ordering.
