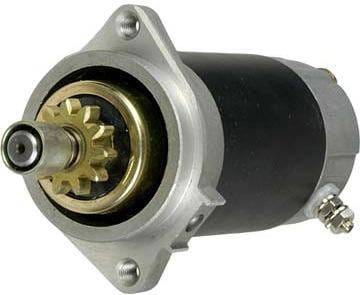

11 Tooth Starter 12V Compatible With Yamaha Outboard 25Hp 30Hp 40Hp 689-81800-12 689-81800-13 25El

YAMAHA OEM PART NUMBERS:
• 689-81800-12
• 689-81800-12-00
• 689-81800-13
• 689-81800-13-00

SPECIFICATIONS:
• Type: Marine Outboard Starter
• Unit: Hitachi PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• kW: 0.6kW
• Rotation: Counterclockwise (CCW)
• Teeth: 11
• Pinion/Splines OD: 33.1mm (1.303in)
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Weight: 5.11 lbs (2.32 kg)

COMPATIBLE WITH YAMAHA OUTBOARD:
25HP Models (1984-1997):
• 25EL, 25ES, 25L, 25S - 1984-1985 Hitachi system
• C25ELH, C25ELR, C25MLH, C25MSH - 1991-1997 Commercial
• CV25EL, CV25EML - 1990 CV series

30HP Models (1984-1997):
• 30EL, 30ES - 1984-1986 Hitachi system
• C30ELR - 1991-1997 Commercial
• CV30EL - 1990 CV series

40HP Models (1991-1997):
• C40ELR, C40ESH, C40MLH, C40MSH, C40PLR - 1991-1997 Commercial
• CV40EL - 1990 CV series

ENGINE TYPE:
• 2-Stroke Outboards
• Hitachi Starting System
• 25HP, 30HP, 40HP displacement

⚠️ NOT COMPATIBLE WITH:
• 4-stroke Yamaha outboards
• Non-Hitachi starting systems
• Engines outside 1984-1997 rangePRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
COMPATIBLE WITH YAMAHA OUTBOARD 2-STROKE ENGINES (1984-1997):
25HP Models (1984-1997):
• 25EL - 25HP Electric Start with Long Shaft (1984-1985)
• 25ES - 25HP Electric Start with Short Shaft (1984-1985)
• 25L - 25HP Long Shaft (1984-1985)
• 25S - 25HP Short Shaft (1984-1985)
• C25ELH - 25HP Commercial Electric Long Hitachi (1993-1997)
• C25ELR - 25HP Commercial Electric Long Remote (1991-1997)
• C25MLH - 25HP Commercial Manual Long Hitachi (1993-1997)
• C25MSH - 25HP Commercial Manual Short Hitachi (1993-1997)
• CV25EL - 25HP CV Electric Long (1990)
• CV25EML - 25HP CV Electric Manual Long (1990)

30HP Models (1984-1997):
• 30EL - 30HP Electric Start with Long Shaft (1984-1986)
• 30ES - 30HP Electric Start with Short Shaft (1984-1986)
• C30ELR - 30HP Commercial Electric Long Remote (1991-1997)
• CV30EL - 30HP CV Electric Long (1990)

40HP Models (1991-1997):
• C40ELR - 40HP Commercial Electric Long Remote (1991-1997)
• C40ESH - 40HP Commercial Electric Short Hitachi (1997)
• C40MLH - 40HP Commercial Manual Long Hitachi (1995)
• C40MSH - 40HP Commercial Manual Short Hitachi (1992-1997)
• C40PLR - 40HP Commercial Power Long Remote (1992-1997)
• CV40EL - 40HP CV Electric Long (1990)

HITACHI STARTING SYSTEM:
All models listed are equipped with Hitachi starting systems (1984-1997)

BOATING APPLICATIONS:
• Fishing - Freshwater and saltwater fishing
• Recreational boating - Weekend cruising
• Water sports - Skiing, tubing
• Commercial fishing - Small commercial vessels
• Pontoon boats - Family recreation
• Inflatable boats - Tender service
• Bay boats - Coastal fishing
• Jon boats - Shallow water fishing

YAMAHA OUTBOARD FEATURES:
• 2-stroke engines
• Hitachi electrical systems
• Electric start capability
• Long and short shaft options
• Remote steering configurations
• Commercial duty models

MARINE CONDITIONS:
• Freshwater lakes and rivers
• Saltwater coastal and offshore
• Brackish water estuaries
• All-weather operation

⚠️ CRITICAL COMPATIBILITY NOTE:
• FOR HITACHI SYSTEM ONLY (1984-1997)
• 2-STROKE ENGINES ONLY
• NOT for 4-stroke engines
• Verify Hitachi starting system before ordering
