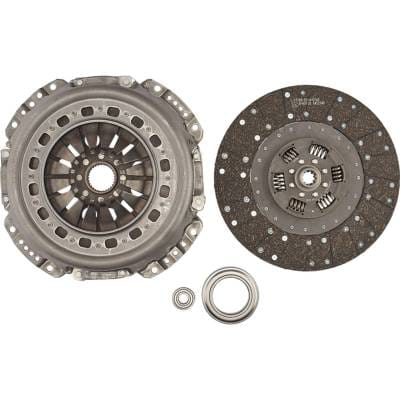

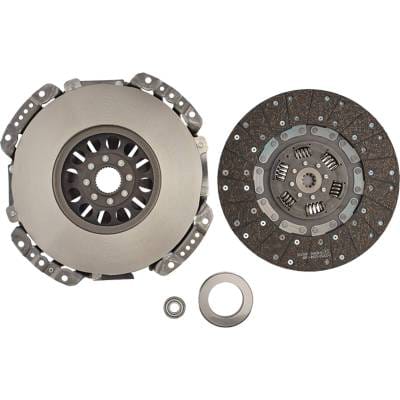

11" Luk Clutch Kit Compatible With New Holland Tn70va Tn75va Tn70sa Tn75sa Tn75v Tractor Double 14

OEM PART NUMBERS:
• NH/Case: 5196818 (Kit), 5197980 (Kit)
• NH/Case: 47134874, 47134874R, 47134882, 47134898, 47135670
• NH/Case: 82824592, 84317689, 84342956
• NH/Case: 87289219, 87345759, 87541561, 87541562
• NH/Case: 87732485, 87732502, 87732503
• NH/Case: 5097877, 5097880, 5097881, 5097958
• NH/Case: 5103175, 5119164, 5119165, 5119875
• NH/Case: 5122028, 5136682, 5157318, 5176450
• NH/Case: 5186555, 5196819, 9973689, 9976506
• NH/Case: B513160, K51336186, K5197980, K87345759
• LuK: 228-0136-10, 328-0332-10, 410-0025-40
• LuK: 500-0459-00, 500-1292-40, 628308710

SPECIFICATIONS:
• Disc OD: 11" (280mm) | Disc Spline: 14 (Trans) / 10 (PTO)
• Type: Double | PP: 6 Bolt, 6 Lever, Cast Iron
• Trans Disc: Captive 14-Spline, 5-Pad Dampened Cerametallic
• PTO Disc: Loose 10-Spline, 4-Pad Rigid Cerametallic
• PTO Release: 115mm OD x 75mm ID x 20mm
• Trans Release: 90mm OD x 50mm ID x 21.6mm
• Pilot Bearing: 47mm OD x 17mm ID
• Includes: PP, Trans Disc, PTO Disc, 2 Release Bearings, Pilot Bearing

NEW HOLLAND / CASE IH APPLICATIONS:
• TN70: TN70, TN70A, TN70D, TN70DA, TN70S, TN70SA, TN70VA
• TN75: TN75, TN75A, TN75D, TN75DA, TN75S, TN75SA, TN75V, TN75VA, TN75N, TN75NA
• Case IH: JX1075VPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
NEW HOLLAND TN70 SERIES (IVECO 8035 4-CYL 3.2L TURBO DIESEL 70HP):
• TN70 (Standard) | TN70A (Cab/ROPS)
• TN70D (DeLuxe) | TN70DA (DeLuxe Cab)
• TN70S (SuperSteer) | TN70SA (SuperSteer Cab)
• TN70VA (Vineyard Cab)


NEW HOLLAND TN75 SERIES (IVECO 8035 4-CYL 3.2L TURBO DIESEL 75HP):
• TN75 (Standard) | TN75A (Cab/ROPS)
• TN75D (DeLuxe) | TN75DA (DeLuxe Cab)
• TN75S (SuperSteer) | TN75SA (SuperSteer Cab)
• TN75V (Vineyard) | TN75VA (Vineyard Cab)
• TN75N (Narrow) | TN75NA (Narrow Cab)


CASE IH:
• JX1075V w/Iveco 8035 4-Cyl 3.2L Turbo Diesel 75HP


NOTE: LuK RepSet clutch kit. 11" double with cerametallic discs — captive 14-spline 5-pad dampened disc + loose 10-spline 4-pad rigid PTO disc. 6 bolt cast iron, 6 lever PP.
