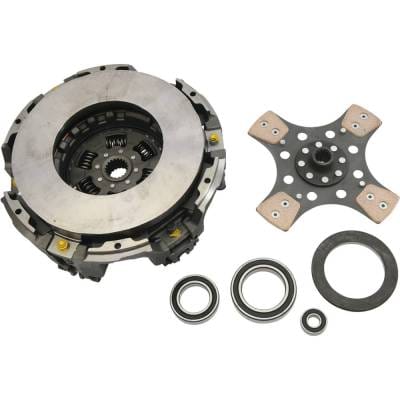

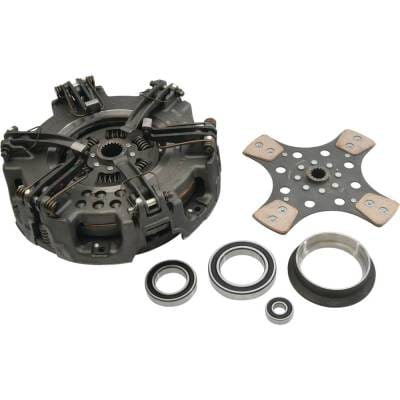

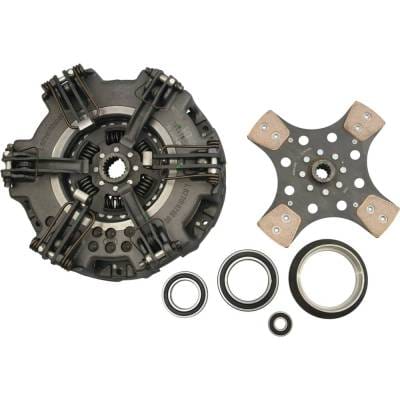

11" Dual Stage Clutch Kit Compatible With John Deere 5510 5510N 5600 5615 5715 5715Hc 5400 5500

OEM PART NUMBERS:
• John Deere: RE211277, RE72534, RE72860 (Pressure Plate)
• John Deere: RE72535, RE72826 (Earlier/Superseded Numbers)
• John Deere: RE177574 (Clutch Disc)
• John Deere: RE173314, CH18554 (Trans Release Bearing)
• LuK: 628305800, 628-3058-00 (Kit)
• LuK: 228011510, 302816102
• LuK: 328037910, 328043510 (Disc)

SPECIFICATIONS:
• Disc OD: 11" | Spline: 13 | Type: Double
• Combination Coil & Diaphragm Double PP w/Safety PTO
• Disc Thickness: 7.6mm
• 6 Bolt | 6 Lever | Material: Cast Iron
• Bearing OD: 100mm/75mm | Bearing Thk: 18mm/16mm
• Pilot Bearing ID: 17mm
• Includes: Pressure Plate, PTO Disc, Release Bearings, Pilot Bearing

JOHN DEERE APPLICATIONS:
• 3-Cyl: 5400, 5400N, 5415, 5415H
• 4-Cyl: 5500, 5500N, 5510, 5510N, 5600, 5615, 5715, 5715HCPRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHN DEERE 5000 SERIES - 3-CYL (JD 3029T 2.9L Diesel):
• 5400 w/JD 3029T 3-Cyl 2.9L Diesel 60HP (1992-1997)
• 5400N w/JD 3029T 3-Cyl 2.9L Diesel 60HP (1992-1997)
• 5415 w/JD 3029T 3-Cyl 2.9L Diesel 65HP (2005-2008)
• 5415H w/JD 3029T 3-Cyl 2.9L Diesel 65HP (2005-2008)


JOHN DEERE 5000 SERIES - 4-CYL (JD 4045T 4.5L Diesel):
• 5500 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1992-1997)
• 5500N w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1992-1997)
• 5510 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1997-2003)
• 5510N w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1997-2003)
• 5600 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (1992-1997)
• 5615 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2005-2008)
• 5715 w/JD 4045T 4-Cyl 4.5L Diesel 85HP (2005-2008)
• 5715HC w/JD 4045T 4-Cyl 4.5L Diesel 85HP (2005-2008)
