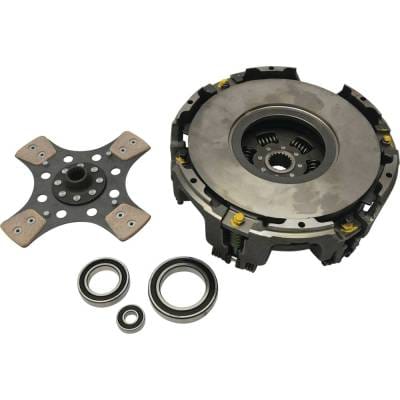

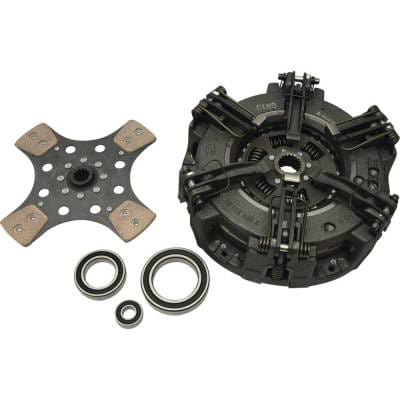

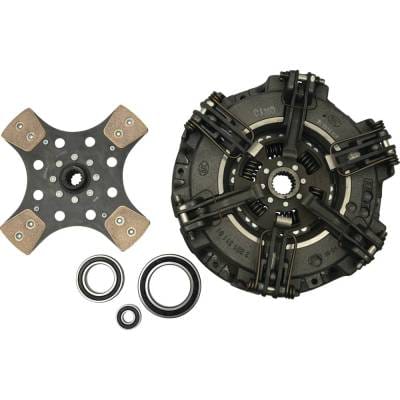

11" Double Clutch Kit Compatible With John Deere 5615 5625 5725 5325 5425 5525 Tractor 13 Spline

OEM PART NUMBERS:
• John Deere: RE197480, RE197482 (Pressure Plate Assembly)
• John Deere: RE225677 (PP w/Internal 6 Pad Cerametallic Disc)
• John Deere: RE227648 (PTO Disc)
• John Deere: RE173314, CH18554 (Trans Release Bearing)
• John Deere: RE173315, CH18562 (PTO Release Bearing)
• John Deere: SJ17028 (Complete Kit)
• LuK: 628306900, 628-3069-00 (Kit)
• LuK: 228015310, 302819302, 302853000
• LuK: 328043410, 328043510 (Disc)

SPECIFICATIONS:
• Disc OD: 11" | Spline: 13 | Type: Double
• Combination Coil & Diaphragm Double PP w/Safety PTO
• 4 Pad Cerametallic Rigid PTO Disc
• 6 Bolt | 6 Lever | Material: Cast Iron
• Bearing OD: 100mm/75mm | Bearing Thk: 18mm/16mm
• Pilot Bearing ID: 17mm
• Includes: Pressure Plate, PTO Disc, Release Bearings, Pilot Bearing

JOHN DEERE APPLICATIONS:
• 5025 Series: 5325, 5425, 5525, 5625, 5725
• 5015 Series: 5615PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
JOHN DEERE 5025 SERIES - 3-CYL (JD 3029T 2.9L Diesel):
• 5325 w/JD 3029T 3-Cyl 2.9L Diesel Turbo 55HP (2004-2008)


JOHN DEERE 5025/5015 SERIES - 4-CYL (JD 4045T 4.5L Diesel):
• 5425 w/JD 4045T 4-Cyl 4.5L Diesel 65HP (2004-2008)
• 5525 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2004-2008)
• 5615 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2005-2008)
• 5625 w/JD 4045T 4-Cyl 4.5L Diesel 75HP (2004-2008)
• 5725 w/JD 4045T 4-Cyl 4.5L Diesel 90HP (2004-2008)


NOTE: Flywheel cast plate thickness .635" with casting #220224900.
NOT for tractors with .787" flywheel step requiring RE211277 PP.
RE225677 includes internal 6 pad cerametallic trans disc.
